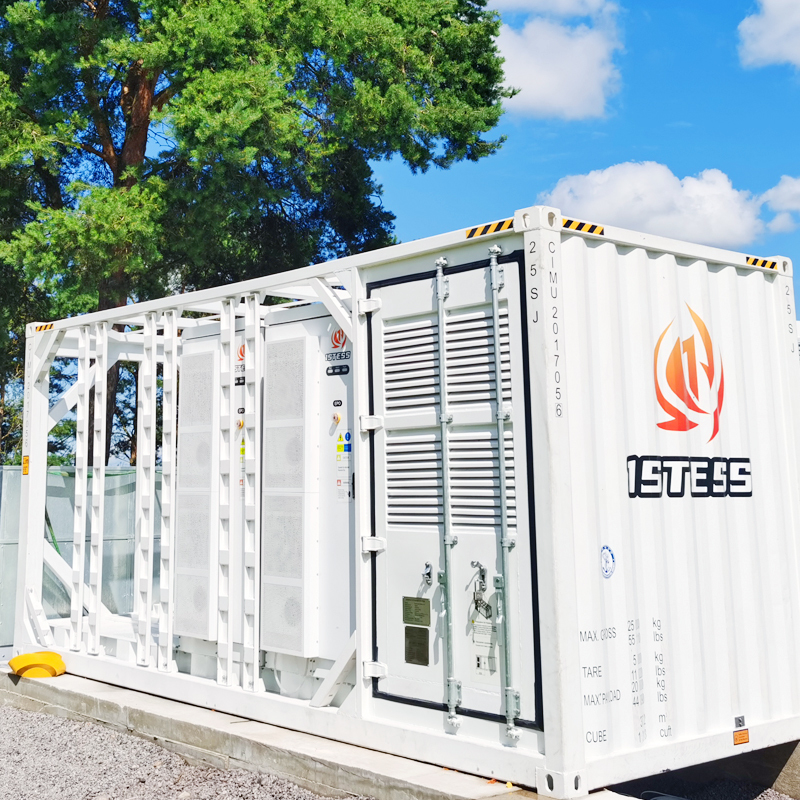

20ft Containerized Battery Storage System 1720kWh 800kW

Name: 20ft Containerized Battery Storage System 1720kWh 800kW
Brand: Shenzhen First Tech Co., Ltd.
SKU: EnerCube
Price: 516,094.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: 1stess

Certification: 1

Model Number: EnerCube

Document: Specification EnerCube3.0-F...ch.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiable

Packaging Details: container

Delivery Time: 60-90 days

Payment Terms: L/C,T/T

Supply Ability: 10 containers per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      20ft container battery storage system, 1720kWh containerized energy storage, 800kW battery storage system


Monitoring System:	Remote Monitoring And Control	Voltage Range:	400-800V
Container Size:	20ft	Warranty:	5 Years
Application:	Power Grid Stabilization And Peak Shaving	Battery Capacity:	Negotiable

Monitoring System:	Remote Monitoring And Control
Voltage Range:	400-800V
Container Size:	20ft
Warranty:	5 Years
Application:	Power Grid Stabilization And Peak Shaving
Battery Capacity:	Negotiable

Description

20ft Containerized Battery Storage System 1720kWh 800kW

High Capacity Energy Storage Container 1720kWh 800kW Power Rating

Key Specifications

Monitoring System	Remote Monitoring And Control
Voltage Range	400-800V
Container Size	20ft
Warranty	5 Years
Application	Power Grid Stabilization And Peak Shaving
Battery Capacity	Negotiable

Product Features

Modular design for flexible configuration
All-in-One integrated system solution
Supports both AC and DC coupling
Standard 20HQ container for easy transport
Classification society certification
24/7 remote monitoring capability
Online assisted operation and maintenance

Technical Parameters

Type	P400C860	P500C1075	P600C1290	P700C1505	P800C1720
Type	DC Side Parameters
Cell type & capacity	LiFePO₄-280Ah
Battery module type	1P20S
System configuration	4*1P240S	5*1P240S	6*1P240S	7*1P240S	8*1P240S
Capacity(BOL)	860kWh	1075kWh	1290kWh	1505kWh	1720kWh
AC Side Parameters
Grid type	3P4W+PE
Rated output power	400kW	500kW	600kW	700kW	800kW
Rated voltage	AC400V
Rated frequency	50/60(±5)Hz
Maximum output current	577A	722A	866A	1010A	1155A
Harmonics	<3%(@rated power)
Overload capacity	110%,10mins;120%,60s
General Parameters
Isolation transformer	No
Protection level	Outdoor installation (Battery cabinet:IP55, Electrical room:IP34)
Container anti-corrosion grade	C3
Operation temperature*	-20℃~50℃
Relative humidity	0~95%(non-condensing)
Permissible altitude**	<2000m
Cooling method	Battery cabinet:HVAC, Electrical room:forced air cooling
Fire fighting system	FAS & FM200/Novec1230
Noise emission	≤75dB
Dimension (WDH)	20HQ container (6058mm2438mm2896mm)
Maximum weight	24500kg
Communication interface	Ethernet
Communication protocol	Modbus TCP/IP
Warranty	5 years (can be extended to 10 years)
Certification	System:UN3536,LVD,EMC,RoHS Cell:IEC62619,UL1973,UL9540A PACK:UN38.3 PCS:G99,EN50549,AS4777.2,VDE4105

Product Overview

The EnerCube3.0 containerized Battery Energy Storage System features an innovative All-in-One modular design that integrates multiple critical components into a single, space-saving solution. This includes the battery PACK, intelligent energy storage converter (PCS), power distribution unit (PDU), automatic fire extinguishing system (FFS), temperature control system (TCS), and intelligent monitoring system (IMS).

Utilizing a standard 20HQ container design, the system offers significant advantages in transportation, installation, and maintenance. The plug-and-play configuration dramatically reduces on-site construction time and associated costs while maximizing operational efficiency.

The system supports integrated transportation with batteries, featuring single clusters in cabinets with thermal isolation between clusters for enhanced safety. Each cluster can be independently maintained, with separate systems for air-conditioning, fire suppression, and battery management. The patented flame prevention technology, combined with the proprietary operation and maintenance platform, enables rapid fault prediction and location.

* Operation temperature range may vary based on specific configuration
** Performance may be affected at higher altitudes
