Highlight:
89kwh Integrated BESS Cabinet
, 215kwh Integrated BESS Cabinet
, Outdoor Battery Energy Storage Cabinet

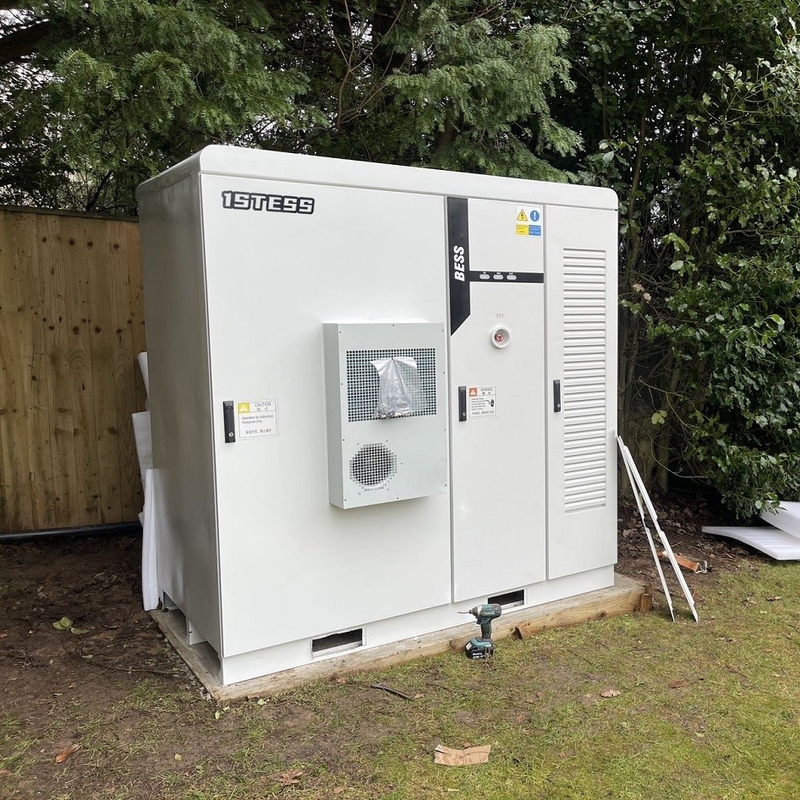

89kwh - 215kwh Integrated BESS Cabinet Outdoor Battery Energy Storage Cabinet
Product Parameter:
| Model |
EnerArk2.0-30P |
EnerArk2.0-60P |
EnerArk2.0-100P |
| Battery Capacity(BOL) |
89kWh~143kWh |
215kWh |
215kWh |
| Battery voltage range |
280V-576V |
672V-864V |
672V-864V |
| Rated charge/dischargepower |
30KW |
60kW |
100kW |
| Rated current |
43A |
86A |
172A |
| Maximum input modulepower |
30KW |
60KW/120KW |
60KW/120KW |
| Maximum input current |
100A |
100A/200A |
100A/200A |
| Altitude |
<2000M |
| Noise |
<75dB |
| Rated grid voltage |
AC400V |
| Dimension (W*H*D) |
1500*2100*1230mm |
1900*2100*1230mm |
1900*2100*1230mm |
| Max Weight |
2000kg |
2500kg |
2500kg |
Product Description:
The whole system is plug-and-play, easy to be transported, installed and maintained. lt is an one-stop integration systenand consist of battery module, PcS, pV controler(MPpT) (optional), control svstem, fire control svstem, temperaturecontrol system and monitoring system. The synergy of the system components can achieve effective charging anddischarging. lt adopts AC coupled micro-grid structure, PcS, load, grid, and access to AC bus, and the correspondingcontrol strategy is developed according to the actual case to ensure the safety of power supply.
The battery cluster consists of modules connected in series, and the whole battery system is controlled by BCM tomonitor the cluster voltage and current in real time. The battery module consists of LiFePo4 battery cells. lt adoptsdistributed BlMl control system with functions of collecting the battery voltage, battery temperature and batteryequalization to ensure the module works effectively and safely.
Product Feathers:
- High-performance LiFePo4 battery to ensure high safety and reliability for energy storage.
- Inteligent temperature control to ensure the optimal temperature environment and lower systempower consumption.
- Real-time data backup.
- Automatic fire fighting system with high safety.
- Patented design with pressure relief and flame arrest.
- One-button start, automatic operating and it support multiple parallel connection.
- Protection class lP55, suitable for outdoor use.
- Four layers of safety protection design for higher safety and reliability.
- Remote viewing service.
FAQ:
1.Who are we?
We are based in Shenzhen Guangdong, China, start from 2017, a manufacturer and solution provider of energy storagesystem products, sell to Africa, Europe, Southeast Asia, Mid East, Eastern Asia.
2.What products I can buy from you?
Inverter, storage lithium battery, portable storage system, residential energy storage system, container energy storage
system, etc.
3.Can you supply OEM & ODM service?
Yes, we can do OEM & ODM as your requirements for you
4.What's your MOQ?
Sample order is acceptable, but for customized product the MO0 is different based on different modelNeed more details please feel free to contact us online or by mail (info@1stess.com) at any time.
5.How you guarantee your products quality?
Our factory have 1S090001 certification, from incoming materials to production, and then to delivery, we have a verycomplete quality control management system to guarantee the quality of every step.
6.What's the lead time for mass production?
It depends on the stock situation, if have stock it wil be 3-5working days, if out of stock it wil be around 20-45daysaccording to different quantity and models.
7.What kind of certificates do you have for your product?
Our products have the certificates of CE, MSDS, IEC, UN38.3, etc.
