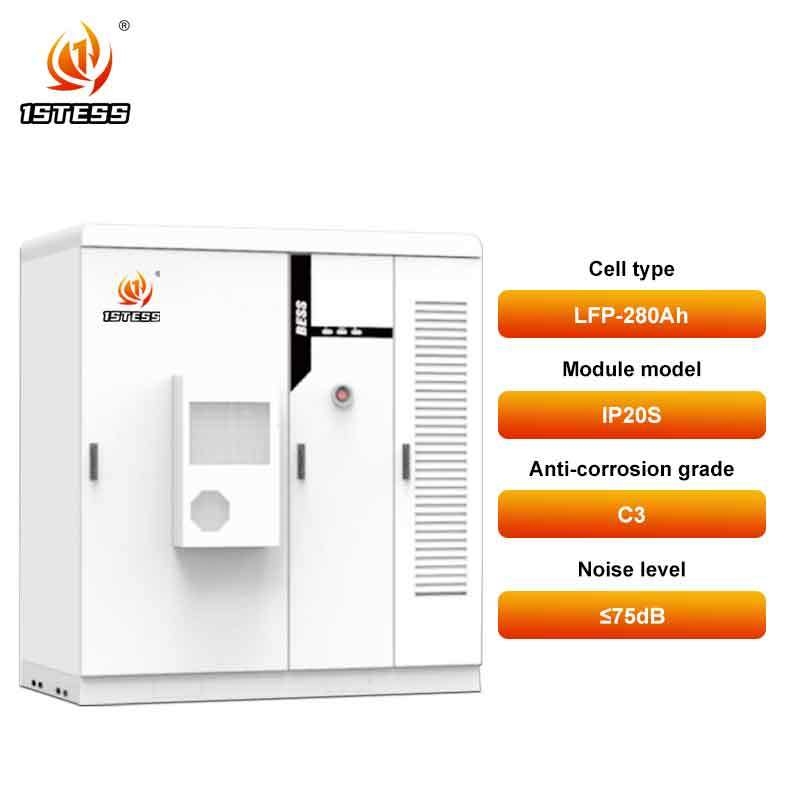

215kWh LiFePO4 Battery Energy Storage System for Industrial Use

Name: 215kWh LiFePO4 Battery Energy Storage System for Industrial Use
Brand: Shenzhen First Tech Co., Ltd.
SKU: EnerArk2.0-M
Price: 341,112.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: 1stess

Certification: LVD

Model Number: EnerArk2.0-M

Document: Specification EnerArk 2.0 -...ld.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: negotiable

Packaging Details: container

Delivery Time: 45-60 days

Supply Ability: 10 containers per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              215kWh LiFePO4 battery storage, industrial energy storage system, LiFePO4 battery for industrial use


Operating Temperature:	-20°C To 50°C	Certifications:	IEC,UN,UL
Battery Type:	LiFePO4	IP Protection:	IP55
Installation:	Indoor Or Outdoor	Application:	Industrial And Commerical
Warranty:	5 Years	Capacity:	107.52KWH-125.44KWH

Operating Temperature:	-20°C To 50°C
Certifications:	IEC,UN,UL
Battery Type:	LiFePO4
IP Protection:	IP55
Installation:	Indoor Or Outdoor
Application:	Industrial And Commerical
Warranty:	5 Years
Capacity:	107.52KWH-125.44KWH

Description

215kWh LiFePO4 Battery Energy Storage System for Industrial Use

Battery Energy Storage System for Microgrid with 215kWh Capacity Multi-Energy Access

Product Specifications

Attribute	Value
Operating Temperature	-20°C To 50°C
Certifications	IEC, UN, UL
Battery Type	LiFePO4
IP protection	IP55
Installation	Indoor Or Outdoor
Application	Industrial And Commercial
Warranty	5 Years
Capacity	107.52KWH-125.44KWH

Key Features

Plug-and-Play ready-to-use design
All-in-One integrated modular system
DC coupled for solar energy access
Supports unbalanced loads operation
Parallel operation capability (up to 60 units)
Virtual Power Plant (VPP) enabled
Auxiliary grid service applications
Complete certifications: CE (IEC 61000, IEC62619, IEC62477), UL, G99, UN3480, UN38.3

Technical Parameters

Model	EnerArk2.0-NBN-P50	EnerArk2.0-NBN-P100
DC Side Parameters
Cell type	LFP-280Ah
Module model	IP20S
Battery capacity range	143.36kWh~215kWh	215kWh
AC On-Grid Side Parameters
Grid connection type	3P4W
Charging/discharging power	50kW	100kW
Rated grid voltage	AC 400V±15%
Frequency range	45Hz~55Hz
Rated AC output current	72A	144A
Power factor	0.8(Leading)~0.8(Lagging)
Harmonics	≤3%(at rated power)
AC Off-Grid Side Parameters
Load type	3P4W
Rated output power	50kW	100kW
Rated output voltage	AC400V±1%
Rated output frequency	50Hz
Rated current	72A	144A
Frequency accuracy	0.2Hz
General Parameters
Dimensions (WHD)	1900mm2100mm1330mm
Packing size (WHD)	2100mm2244mm1500mm
Maximum weight	2500kg
Degree of protection	IP55(Battery Cabinet) IP34(Electrical Cabinet)
Cooling method type	Battery Cabinet (air conditioner) & Electrical Cabinet (forced air cooling)
Fire fighting system	FM200 automatic fire extinguishing
Anti-corrosion grade	C3
Relative humidity	0-95%(non-condensing)
Operating temperature*	-20℃~50℃
Altitude**	<2000m
Noise level	≤75dB
Communication interface	RS485, Ethernet
Communication protocol	Modbus RTU, Modbus TCP/IP
Product standard warranty	5 years, 6000 cycles (0.5C, 95%DOD, EOL:70%)
PV Side Parameters (Optional)
Maximum PV input power	30kW/60kW/90kW/120kW
MPPT voltage range	200V-850V
Number of MPPTs	1/1/2/2
Number of PV inputs	1/1/2/2
Maximum input current	100A/200A/300A/400A
Certifications	CE(IEC61000,IEC62619,IEC62477), UN3480, UN38.3, MSDS Converter: UK G99, VDE4105, EN50549 Cell: IEC62619, UL1973, UL1642, UL9540A

* Operating temperature may vary based on environmental conditions

** Performance may vary at higher altitudes

System Overview

The EnerArk-2.0 is a compact, plug-and-play battery energy storage system designed for easy transportation, installation, and maintenance. This all-in-one system integrates PCS, batteries, BMS, EMS, MPPT, automatic fire control, and temperature control systems into a single solution. Featuring high-performance EV-grade LiFePO4 batteries, the system provides four layers of safety protection through intelligent BMS design.

The synergy of system components and unique design enables effective charging and discharging for various applications, delivering high energy density and maximized battery lifespan for lower LCOS. Supporting both AC and DC coupling applications, the EnerArk-2.0 offers seamless integration and is suitable for all ranges of commercial and industrial energy storage projects.
