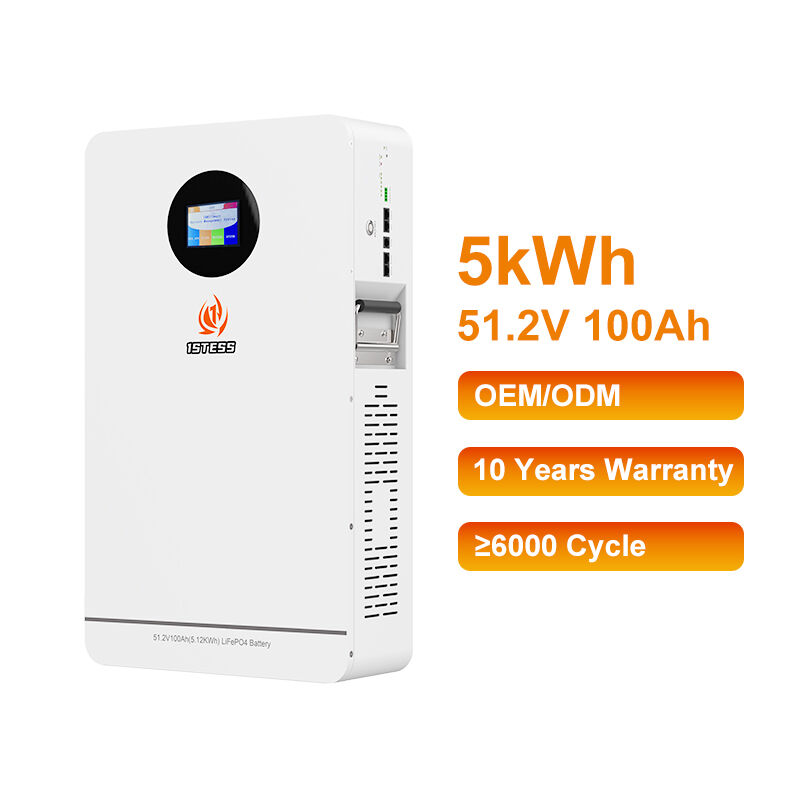

High Capacity 100Ah 51.2V Wall Battery with Intuitive Touch Screen Control

Name: High Capacity 100Ah 51.2V Wall Battery with Intuitive Touch Screen Control
Brand: Shenzhen First Tech Co., Ltd.
SKU: RPES-WM4 (25.6V 200Ah)
Price: 550 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: 1STESS

Certification: CE

Model Number: RPES-WM4 (25.6V 200Ah)

Document: 51.2V 100Ah (5.12kWh) Wall ...24.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: USD 550 one piece

Packaging Details: carton box

Delivery Time: 30 days

Payment Terms: L/C,T/T

Supply Ability: 2000 pieces per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                  100Ah 51.2V wall battery, 5.12 Kwh lithium ion battery, wall battery with touch screen


Capacity:	5.12kWh	Chemistry:	Lithium
Cycle Life:	>6000 Cycles	Operating Temperature:	-20°C To 55°C
Size:	650384142 Mm

Capacity:	5.12kWh
Chemistry:	Lithium
Cycle Life:	>6000 Cycles
Operating Temperature:	-20°C To 55°C
Size:	650384142 Mm

Description

High Capacity 100Ah 51.2V Wall Battery with Intuitive Touch Screen Control

Advanced home energy storage solution featuring high-capacity lithium iron phosphate technology with intuitive touch screen monitoring and control.

Key Features

Safe and stable Lithium Iron Phosphate (LiFePO₄) battery chemistry
51.2V rated voltage with 100Ah capacity, delivering 5.12kWh of energy
Wide output voltage range from 43.2V to 58.4V
Maximum charging and discharging current up to 100A
Stable operation across wide temperature range (-20℃ to 60℃)
Over 6,000 cycles at 0.2C, 25℃, 80% depth of discharge
Design life exceeding 10 years
Solar energy storage for peak shaving and load shifting
Reliable backup power during grid outages
Touch screen for real-time battery status monitoring
Compatible with various home appliances and devices

Technical Specifications

Model	RPES-WM4 (51.2V 100Ah)
Rated Voltage	51.2V
Rated Capacity	100Ah
Rated Energy	5.12kWh
Output Voltage Range	43.2V~58.4V
Charging Voltage	57.6~58.4V
Cut-off Voltage	43.2V
Max. Charging Current	100A
Recommended Charging Current	50A
Max. Discharging Current	100A
Efficiency	>98%
Dimension LWH (mm)	650384142
Weight (kg)	48
Humidity	5%~95% Relative humidity
Charging Temperature	0℃~55℃
Discharging Temperature	-20℃~60℃
Storage Temperature	-10℃~30℃
Cycle Life	>6000 times (0.2C,@25℃,80%DOD)
Design Life	>10 years
Operating Mode	Touch Screen

Product Gallery

Regional Applications

Kenya

Supporting off-grid solar applications, this model is ideal for Kenyan households. Its long life and easy operation empower energy independence.

Sweden

Eco-conscious Swedes will appreciate the battery's high efficiency and long design life, supporting sustainable home energy systems.

Norway

Optimized for cold climates, this unit performs reliably in Norwegian winters. Its sleek design and touch control align with local preferences for smart home technology.
