Standard 20HQ Container Energy Storage System Integrated PCS PDU FFS TCS IMS Modbus TCP/IP Remote Communication

Name: Standard 20HQ Container Energy Storage System Integrated PCS PDU FFS TCS IMS Modbus TCP/IP Remote Communication
Brand: Shenzhen First Tech Co., Ltd.
SKU: EnerCube
Price: 516,094.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: 1stess

Certification: 1

Model Number: EnerCube

Document: Specification EnerCube3.0-F...ch.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiable

Packaging Details: container

Delivery Time: 60-90 days

Payment Terms: L/C,T/T

Supply Ability: 10 containers per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      20HQ container energy storage system, containerized battery storage with PCS, energy storage system with Modbus TCP/IP


Monitoring System:	Remote Monitoring And Control	Voltage Range:	400-800V
Container Size:	20ft	Warranty:	5 Years
Application:	Power Grid Stabilization And Peak Shaving	Battery Capacity:	Negotiable

Monitoring System:	Remote Monitoring And Control
Voltage Range:	400-800V
Container Size:	20ft
Warranty:	5 Years
Application:	Power Grid Stabilization And Peak Shaving
Battery Capacity:	Negotiable

Description

Standard 20HQ Container Energy Storage System Integrated PCS PDU FFS TCS IMS Modbus TCP/IP Remote Communication

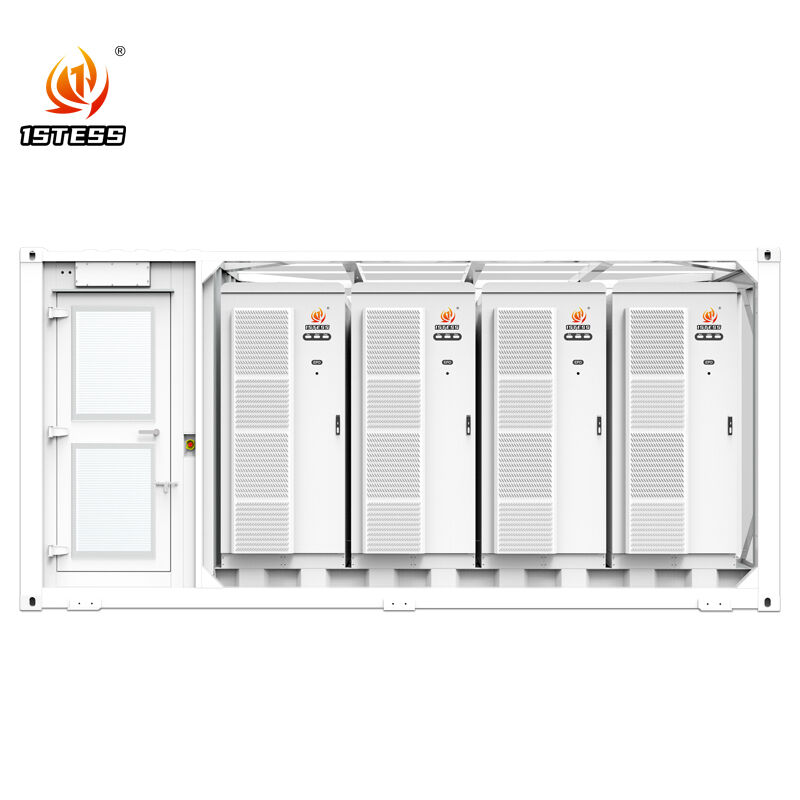

Standard 20HQ Container Energy Storage System

Integrated PCS, PDU, FFS, TCS, IMS with Modbus TCP/IP Remote Communication

Product Overview

A complete all-in-one energy storage solution integrating battery PACK, PCS, PDU, fire suppression, temperature control, and intelligent monitoring into a single 20HQ standard container for rapid deployment and reliable operation.

Key Features

All-in-One Integration: Complete system integration in standard 20HQ container
Plug-and-Play Deployment: Modular design with battery-integrated transport reduces installation time and costs
Independent Cluster Management: Single cluster per cabinet with thermal isolation for safe maintenance
Smart O&M & Fault Prediction: Proprietary platform with patented anti-flame leakage technology
Wide Environmental Adaptability: Operating range -20℃ to 50℃, altitude up to 2000m
International Certifications: Meets UN3536, UL1973, IEC62619, G99 and other standards
24/7 Monitoring: Round-the-clock remote operation and maintenance support

System Specifications

Energy Capacity Range	860kWh - 1720kWh (BOL)
Rated Output Power	400kW - 800kW
Rated Voltage	AC400V, 3P4W+PE
Frequency	50/60Hz ±5%
Harmonic Distortion	<3% (@ rated power)
Overload Capacity	110% for 10 min, 120% for 60 s
Warranty	5 years (extendable to 10 years)

Technical Parameters

Model Specifications

Parameter	P400C860	P500C1075	P600C1290	P700C1505	P800C1720
DC Side Parameters
Cell Type & Capacity	LiFePO₄-280Ah
Battery Module Type	1P20S
System Configuration	4*1P240S	5*1P240S	6*1P240S	7*1P240S	8*1P240S
Capacity (BOL)	860kWh	1075kWh	1290kWh	1505kWh	1720kWh
AC Side Parameters
Grid Type	3P4W+PE
Rated Output Power	400kW	500kW	600kW	700kW	800kW
Rated Voltage	AC400V
Rated Frequency	50/60(±5)Hz
Maximum Output Current	577A	722A	866A	1010A	1155A

General Parameters

Isolation Transformer: No

Protection Level: Outdoor installation (Battery cabinet: IP55, Electrical room: IP34)

Anti-corrosion Grade: C3

Operation Temperature: -20℃ to 50℃

Relative Humidity: 0-95% (non-condensing)

Permissible Altitude: <2000m

Cooling Method: Battery cabinet: HVAC, Electrical room: forced air cooling

Fire Fighting System: FAS & FM200/Novec1230

Noise Emission: ≤75dB

Dimensions: 6058mm × 2438mm × 2896mm (20HQ container)

Maximum Weight: 24500kg

Communication Interface: Ethernet

Communication Protocol: Modbus TCP/IP

Certifications

System: UN3536, LVD, EMC, RoHS
Cell: IEC62619, UL1973, UL9540A
PACK: UN38.3
PCS: G99, EN50549, AS4777.2, VDE4105

Product Images
