Smart Monitoring Container BESS with Fault Prediction & Location
Advanced containerized battery energy storage system featuring anti-flame leakage patent technology, 110% overload for 10 minutes, and 120% overload for 60 seconds.
All-in-One Container Energy Storage Solution
Standard 20HQ Container Energy Storage System Integrated with PCS, PDU, FFS, TCS, IMS and Modbus TCP/IP Remote Communication
Key Features
- All-in-One Integration: Combines battery PACK, PCS, PDU, fire suppression, temperature control, and intelligent monitoring in a single 20HQ standard container
- Plug-and-Play Rapid Deployment: Modular design with battery-integrated transport reduces on-site construction time and cost
- Independent Cluster Management + Thermal Isolation: Single cluster per cabinet with thermal isolation between clusters for independent maintenance and enhanced safety
- Smart O&M & Fault Prediction: Proprietary operation platform with patented anti-flame leakage technology enables fast fault prediction and accurate location
- Wide Temperature & Altitude Adaptability: Operating range -20℃ to 50℃, altitude up to 2000m (derated above)
- Comprehensive International Certifications: System, cell, PACK, and PCS meet UN3536, UL1973, IEC62619, G99 standards
- 24/7 Online Monitoring: Round-the-clock remote O&M support
System Specifications
| Feature |
Description |
| Modular Design |
Standard 20HQ container, flexible configuration |
| AC/DC Coupling |
Supports both AC and DC coupling |
| Protection Rating |
Battery cabinet IP55, electrical room IP34, outdoor installation |
| Anti-corrosion Grade |
C3 |
| Cooling Method |
Battery cabinet: HVAC; Electrical room: forced air cooling |
| Fire Fighting System |
FAS + FM200/Novoc1230 |
| Noise Emission |
≤75dB |
| Communication |
Ethernet, Modbus TCP/IP |
Technical Specifications
| Type |
P400C860 |
P500C1075 |
P600C1290 |
P700C1505 |
P800C1720 |
| DC Side Parameters |
| Cell type & capacity |
LiFePO₄-280Ah |
| Battery module type |
1P20S |
| System configuration |
4*1P240S |
5*1P240S |
6*1P240S |
7*1P240S |
8*1P240S |
| Capacity (BOL) |
860kWh |
1075kWh |
1290kWh |
1505kWh |
1720kWh |
| AC Side Parameters |
| Grid type |
3P4W+PE |
| Rated output power |
400kW |
500kW |
600kW |
700kW |
800kW |
| Rated voltage |
AC400V |
| Rated frequency |
50/60(±5)Hz |
| Maximum output current |
577A |
722A |
866A |
1010A |
1155A |
| Harmonics |
<3% (@rated power) |
| Overload capacity |
110%, 10mins; 120%, 60s |
General Parameters
Isolation transformer: No
Protection level: Outdoor installation (Battery cabinet: IP55, Electrical room: IP34)
Container anti-corrosion grade: C3
Operation temperature: -20℃ to 50℃
Relative humidity: 0-95% (non-condensing)
Permissible altitude: <2000m
Cooling method: Battery cabinet: HVAC, Electrical room: forced air cooling
Fire fighting system: FAS & FM200/Novec1230
Noise emission: ≤75dB
Dimension (W*D*H): 20HQ container (6058mm * 2438mm * 2896mm)
Maximum weight: 24500kg
Communication interface: Ethernet
Communication protocol: Modbus TCP/IP
Warranty: 5 years (can be extended to 10 years)
Certification: System: UN3536, LVD, EMC, RoHS | Cell: IEC62619, UL1973, UL9540A | PACK: UN38.3 | PCS: G99, EN50549, AS4777.2, VDE4105

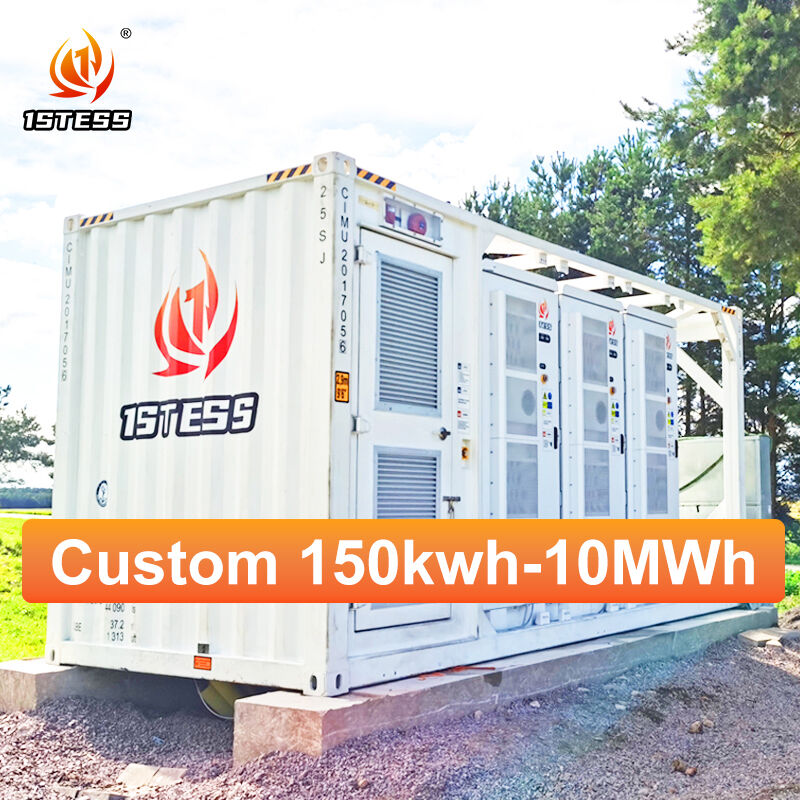

Product Images
