AC/DC Dual-Coupling Container Battery Storage Forced Air Cooling & HVAC Temp Control FAS+FM200 Fire ≤75dB Noise

Name: AC/DC Dual-Coupling Container Battery Storage Forced Air Cooling & HVAC Temp Control FAS+FM200 Fire ≤75dB Noise
Brand: Shenzhen First Tech Co., Ltd.
SKU: EnerCube
Price: 516,094.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: 1stess

Certification: 1

Model Number: EnerCube

Document: Specification EnerCube3.0-F...ch.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiable

Packaging Details: container

Delivery Time: 60-90 days

Payment Terms: L/C,T/T

Supply Ability: 10 containers per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      AC/DC container battery storage forced air cooling, containerized battery storage HVAC temp control, battery storage system with fire suppression


Monitoring System:	Remote Monitoring And Control	Voltage Range:	400-800V
Container Size:	20ft	Warranty:	5 Years
Application:	Power Grid Stabilization And Peak Shaving	Battery Capacity:	Negotiable

Monitoring System:	Remote Monitoring And Control
Voltage Range:	400-800V
Container Size:	20ft
Warranty:	5 Years
Application:	Power Grid Stabilization And Peak Shaving
Battery Capacity:	Negotiable

Description

AC/DC Dual-Coupling Container Battery Storage Forced Air Cooling & HVAC Temp Control FAS+FM200 Fire ≤75dB Noise

AC/DC Dual-Coupling Container Battery Storage System

All-in-one integrated energy storage solution featuring forced air cooling, HVAC temperature control, FM200 fire suppression, and ≤75dB noise operation in a standard 20HQ container.

Key Features

All-in-One Integration: Combines battery PACK, PCS, PDU, fire suppression, temperature control, and intelligent monitoring in a single container
Plug-and-Play Deployment: Modular design with battery-integrated transport reduces on-site construction time and cost
Independent Cluster Management: Single cluster per cabinet with thermal isolation between clusters for enhanced safety and maintenance
Smart Operation & Maintenance: Proprietary platform with patented anti-flame leakage technology for fault prediction and location
Wide Environmental Adaptability: Operating range -20℃ to 50℃, altitude up to 2000m (derated above)
International Certifications: System, cell, PACK, and PCS meet UN3536, UL1973, IEC62619, G99 standards
24/7 Monitoring: Continuous online monitoring with round-the-clock remote O&M support

System Specifications

Modular Design	Standard 20HQ container, flexible configuration
AC/DC Coupling	Supports both AC and DC coupling
Protection Rating	Battery cabinet IP55, electrical room IP34, outdoor installation
Anti-corrosion Grade	C3
Cooling Method	Battery cabinet: HVAC; Electrical room: forced air cooling
Fire Fighting System	FAS + FM200/Novoc1230
Noise Emission	≤75dB
Communication	Ethernet, Modbus TCP/IP

Performance Specifications

Energy Capacity Range: 860kWh - 1720kWh (BOL)

Rated Output Power: 400kW - 800kW

Rated Voltage: AC400V, 3P4W+PE

Frequency: 50/60Hz ±5%

Harmonic Distortion: <3% (@ rated power)

Overload Capacity: 110% for 10 min, 120% for 60 s

Warranty: 5 years (extendable to 10 years)

Technical Models Comparison

Type	P400C860	P500C1075	P600C1290	P700C1505	P800C1720
DC Side Parameters
Cell type & capacity	LiFePO₄-280Ah
Battery module type	1P20S
System configuration	4*1P240S	5*1P240S	6*1P240S	7*1P240S	8*1P240S
Capacity (BOL)	860kWh	1075kWh	1290kWh	1505kWh	1720kWh
AC Side Parameters
Grid type	3P4W+PE
Rated output power	400kW	500kW	600kW	700kW	800kW
Rated voltage	AC400V
Rated frequency	50/60(±5)Hz
Maximum output current	577A	722A	866A	1010A	1155A

General Parameters

Isolation transformer: No

Protection level: Outdoor installation (Battery cabinet: IP55, Electrical room: IP34)

Container anti-corrosion grade: C3

Operation temperature: -20℃ to 50℃

Relative humidity: 0-95% (non-condensing)

Permissible altitude: <2000m

Cooling method: Battery cabinet: HVAC, Electrical room: forced air cooling

Fire fighting system: FAS & FM200/Novec1230

Noise emission: ≤75dB

Dimension (W*D*H): 20HQ container (6058mm * 2438mm * 2896mm)

Maximum weight: 24500kg

Communication interface: Ethernet

Communication protocol: Modbus TCP/IP

Certifications

System: UN3536, LVD, EMC, RoHS | Cell: IEC62619, UL1973, UL9540A | PACK: UN38.3 | PCS: G99, EN50549, AS4777.2, VDE4105

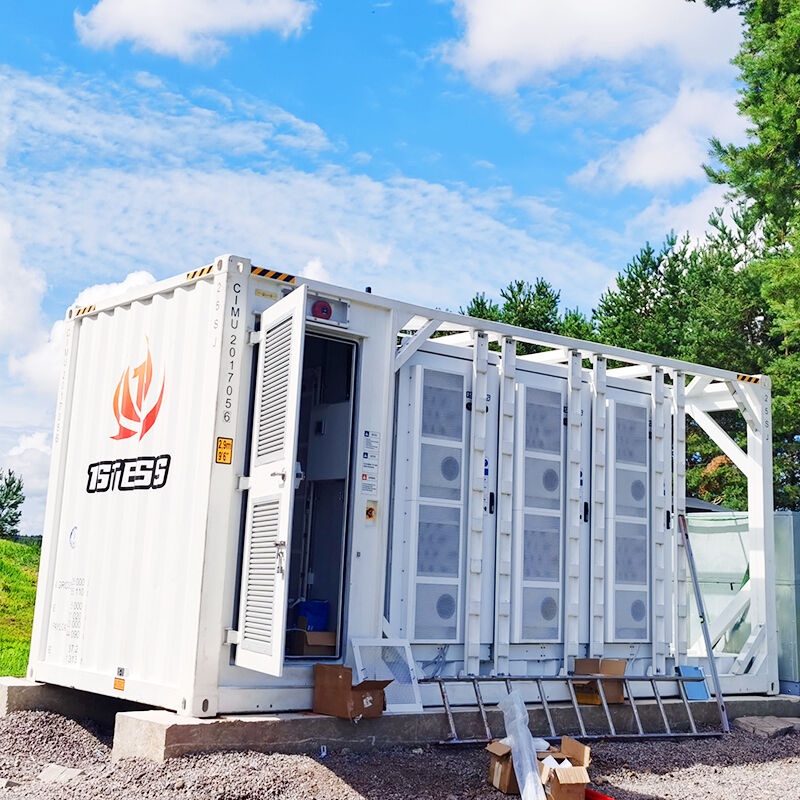

Product Images
