20HQ Standard Container BESS 5-Year Warranty Extendable to 10 Years Ethernet 3P4W+PE 400V Output

Name: 20HQ Standard Container BESS 5-Year Warranty Extendable to 10 Years Ethernet 3P4W+PE 400V Output
Brand: Shenzhen First Tech Co., Ltd.
SKU: EnerCube
Price: 516,094.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: 1stess

Certification: 1

Model Number: EnerCube

Document: Specification EnerCube3.0-F...ch.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiable

Packaging Details: container

Delivery Time: 60-90 days

Payment Terms: L/C,T/T

Supply Ability: 10 containers per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      20HQ container BESS 5-year warranty, Containerized battery storage 400V output, BESS system Ethernet 3P4W+PE


Monitoring System:	Remote Monitoring And Control	Voltage Range:	400-800V
Container Size:	20ft	Warranty:	5 Years
Application:	Power Grid Stabilization And Peak Shaving	Battery Capacity:	Negotiable

Monitoring System:	Remote Monitoring And Control
Voltage Range:	400-800V
Container Size:	20ft
Warranty:	5 Years
Application:	Power Grid Stabilization And Peak Shaving
Battery Capacity:	Negotiable

Description

20HQ Standard Container BESS 5-Year Warranty Extendable to 10 Years Ethernet 3P4W+PE 400V Output

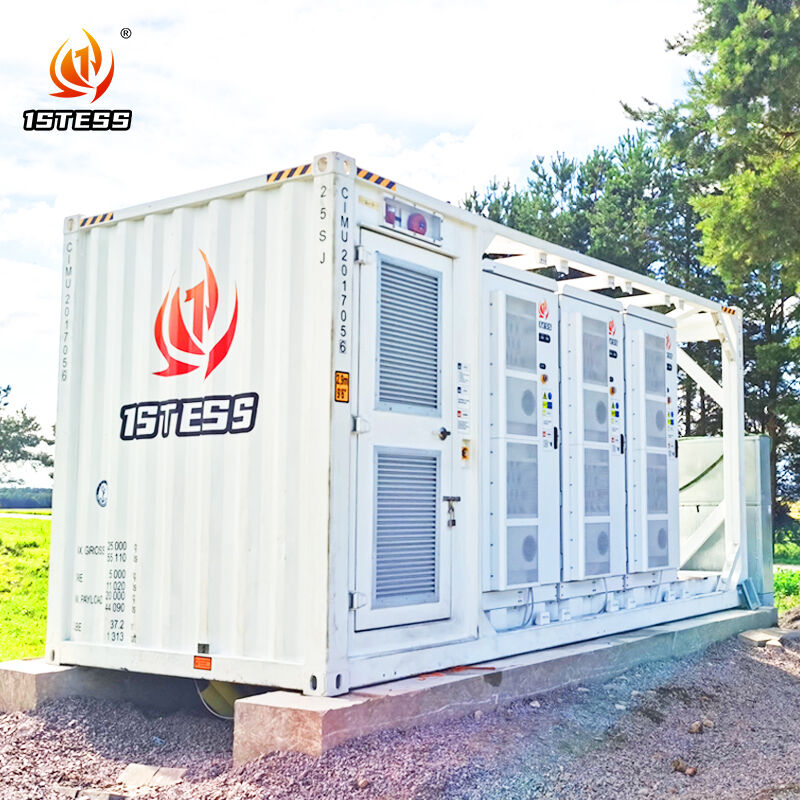

20HQ Containerized Battery Energy Storage System

All-in-One Container Solution: Complete BESS in standard 20HQ container with 5-year warranty extendable to 10 years. Features 400V output, 3P4W+PE configuration, and Ethernet connectivity.

Key Features & Benefits

Complete Integration: Battery PACK, PCS, PDU, fire suppression, temperature control, and intelligent monitoring in one container
Rapid Deployment: Plug-and-play modular design with battery-integrated transport reduces installation time and costs
Enhanced Safety: Independent cluster management with thermal isolation between clusters for safe maintenance
Smart Monitoring: Proprietary platform with patented anti-flame leakage technology for fault prediction and location
Wide Operating Range: -20℃ to 50℃ temperature range, up to 2000m altitude capability
Global Compliance: Comprehensive certifications including UN3536, UL1973, IEC62619, G99 standards
Continuous Support: 24/7 online monitoring with round-the-clock remote operations and maintenance

System Specifications

Modular Design	Standard 20HQ container with flexible configuration options
AC/DC Coupling	Supports both AC and DC coupling configurations
Protection Rating	Battery cabinet: IP55, Electrical room: IP34 (outdoor installation)
Anti-corrosion Grade	C3
Cooling Method	Battery cabinet: HVAC; Electrical room: forced air cooling
Fire Fighting System	FAS + FM200/Novoc1230
Noise Emission	≤75dB
Communication	Ethernet, Modbus TCP/IP

Performance Specifications

Energy Capacity Range	860kWh ~ 1720kWh (BOL)
Rated Output Power	400kW ~ 800kW
Rated Voltage	AC400V, 3P4W+PE
Frequency	50/60Hz ±5%
Harmonic Distortion	<3% (@ rated power)
Overload Capacity	110% for 10 min, 120% for 60 s
Warranty	5 years (extendable to 10 years)

Model Comparison

Parameter / Model	P400C860	P500C1075	P600C1290	P700C1505	P800C1720
DC Side Parameters
Cell type & capacity	LiFePO₄-280Ah
Battery module type	1P20S
System configuration	4*1P240S	5*1P240S	6*1P240S	7*1P240S	8*1P240S
Capacity (BOL)	860kWh	1075kWh	1290kWh	1505kWh	1720kWh
AC Side Parameters
Grid type	3P4W+PE
Rated output power	400kW	500kW	600kW	700kW	800kW
Rated voltage	AC400V
Rated frequency	50/60(±5)Hz
Maximum output current	577A	722A	866A	1010A	1155A

General Specifications

Isolation transformer	No
Operation temperature	-20℃ to 50℃
Relative humidity	0-95% (non-condensing)
Permissible altitude	<2000m
Dimension (WDH)	20HQ container (6058mm * 2438mm * 2896mm)
Maximum weight	24500kg

Certifications & Standards

System UN3536, LVD, EMC, RoHS
Cell IEC62619, UL1973, UL9540A
PACK UN38.3
PCS G99, EN50549, AS4777.2, VDE4105

Product Images
