6.2kW 48V Hybrid Solar Inverter For Residential Energy Storage

Name: 6.2kW 48V Hybrid Solar Inverter For Residential Energy Storage
Brand: Shenzhen First Tech Co., Ltd.
SKU: 6.2kW 48V Hybrid Solar Inverter
Price: 350.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: 1STESS

Certification: CE

Model Number: 6.2kW 48V Hybrid Solar Inverter

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Service Quotation

Delivery Time: 10

Payment Terms: L/C,D/A,D/P,T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          6.2kW hybrid solar inverter, 48V residential energy storage inverter, off grid hybrid solar inverter


Size:	33027898mm	Efficiency:	95%
Communication Ports:	RS232/RS485/WiFi (optional)	Battery Compatibility:	Lead Acid, Lithium-ion
Output Frequency:	50/60Hz	Frequency:	50Hz/60Hz
Waveform:	Pure Sine Wave	Protectionfeatures:	Overload, Short Circuit, Over Temperature
Chargingcurrent:	60A	Nominal Battery Voltage:	48V
Outputvoltage:	220V AC	Input Voltage:	48V DC
Powercapacity:	5kW	Operatingtemperaturerange:	-10°C To 50°C
Dimensions:	450 X 350 X 150 Mm

Size:	33027898mm
Efficiency:	95%
Communication Ports:	RS232/RS485/WiFi (optional)
Battery Compatibility:	Lead Acid, Lithium-ion
Output Frequency:	50/60Hz
Frequency:	50Hz/60Hz
Waveform:	Pure Sine Wave
Protectionfeatures:	Overload, Short Circuit, Over Temperature
Chargingcurrent:	60A
Nominal Battery Voltage:	48V
Outputvoltage:	220V AC
Input Voltage:	48V DC
Powercapacity:	5kW
Operatingtemperaturerange:	-10°C To 50°C
Dimensions:	450 X 350 X 150 Mm

Description

6.2kW 48V Hybrid Solar Inverter For Residential Energy Storage

6.2kW 48V Hybrid Solar Inverter for Residential Energy Storage

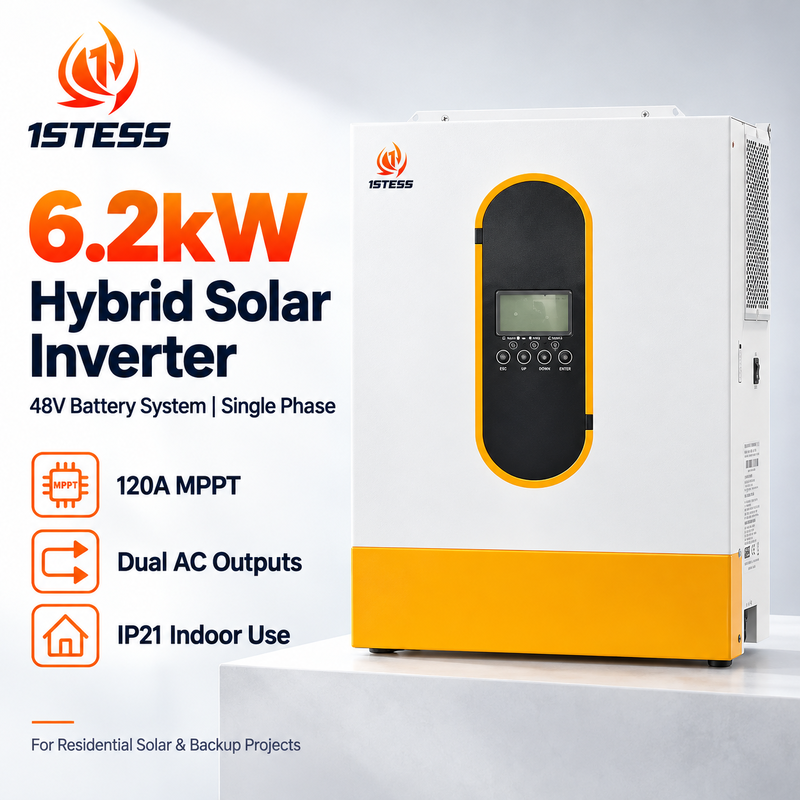

The 1stess EM6200-48L is a 6.2kW 48V single-phase hybrid solar inverter engineered for residential energy storage, off-grid solar power systems and indoor backup projects. It combines pure sine wave AC output, an integrated 120A MPPT solar charger and dual AC outputs for intelligent load management.

Built around a 48V battery platform, this solar storage inverter supports RS485 communication with compatible lithium battery BMS protocols. Lithium battery activation via PV or utility input simplifies commissioning, and battery-free operation is available under specified PV and load conditions.

The inverter delivers 220/230V AC output at 50/60Hz. A front LCD and four physical buttons support local status viewing and setting adjustment, while RS232/RS485 interfaces enable system integration. Optional WiFi monitoring requires the matching module.

The IP21 wall-mounted enclosure is intended for dry indoor installation. The connection area includes AC input, main output, second output, battery input and PV input, helping installers plan cable access and service space efficiently.

For importers, EPC contractors, solar installers and procurement teams sourcing a 6.2kW 48V inverter with MPPT, 1stess provides a focused starting point for project evaluation. Request the current datasheet, BMS protocol confirmation and project quotation. Share your PV configuration, battery specification, AC requirements, order quantity and destination market for application review.

Key Features

6,200W rated single-phase AC output with pure sine wave waveform
Built-in MPPT solar charger with up to 120A maximum charging current
60–500V DC PV MPPT voltage range and 500V DC maximum PV open-circuit voltage
Dual AC outputs (main and second) for load management within the 6.2kW total rating
RS485 lithium battery communication with compatible BMS protocol matching
Lithium battery activation via PV or utility input
Battery-free operation supported within approved operating conditions
Output priority modes: UTL / SOL / SBU / SUB
Front LCD and four physical buttons for local control and monitoring
RS232 / RS485 communication interfaces; optional WiFi monitoring module
IP21 wall-mounted enclosure for dry indoor installation

Technical Specifications

Brand	1stess
Model reference	EM6200-48L; confirm the exact production suffix
Rated AC output	6,200W
Phase	Single-phase input / single-phase output
Nominal battery voltage	48V DC
Nominal AC input	230V AC
AC output voltage	220/230V AC ±5%
Output frequency	50/60Hz
Output waveform	Pure sine wave
Solar charger	Built-in MPPT
Maximum solar charging current	120A
Specified PV MPPT voltage range	60–500V DC
Maximum PV open-circuit voltage	500V DC
AC outputs	Main output and second output; total inverter rated output remains 6.2kW
Lithium battery communication	RS485; battery BMS protocol matching required
Communication interfaces	RS485 / RS232; physical connector version to be confirmed
Lithium battery activation	Via PV or utility input
Battery-free operation	Supported within the approved operating conditions
Monitoring	Optional WiFi module
Local controls	LCD and four physical buttons
Output priority modes	UTL / SOL / SBU / SUB
Enclosure	IP21, indoor installation
Parallel capability	No, according to the supplied EMT series table

Frequently Asked Questions

What battery voltage does this inverter use?

It is designed for a nominal 48V battery platform. Confirm the operating voltage range, battery current capability and BMS settings against the current inverter manual and battery datasheet.

Can it communicate with a LiFePO4 battery?

RS485 lithium battery communication is supported with compatible BMS protocols. Confirm the battery model, firmware, cable pinout and communication protocol before integration.

Do dual AC outputs provide 12.4kW in total?

No. The inverter is rated at 6.2kW total output. Main and second output loads must remain within the approved overall and per-output limits.

Is WiFi monitoring included?

WiFi monitoring is optional and requires the correct module and compatible monitoring service. Include the monitoring requirement in the quotation request.

Can it be installed outdoors?

The supplied specification identifies an IP21 enclosure for indoor installation. Choose a dry, ventilated installation location that meets the manual's clearance and environmental requirements.

Does "hybrid" mean grid-export operation is supported?

The supplied material does not establish grid-export capability or destination-market grid compliance. Confirm the operating modes and required approvals for the project before specifying grid interaction.

Can multiple units operate in parallel?

The supplied EMT series table lists no parallel capability for this version. Select a separately approved parallel-capable model if the project requires capacity expansion.

Product Gallery

Request the current datasheet, BMS protocol confirmation and project quotation for the 1stess EM6200-48L 6.2kW 48V hybrid solar inverter. Share your PV configuration, battery specification, AC requirements, order quantity and destination market for application review.
