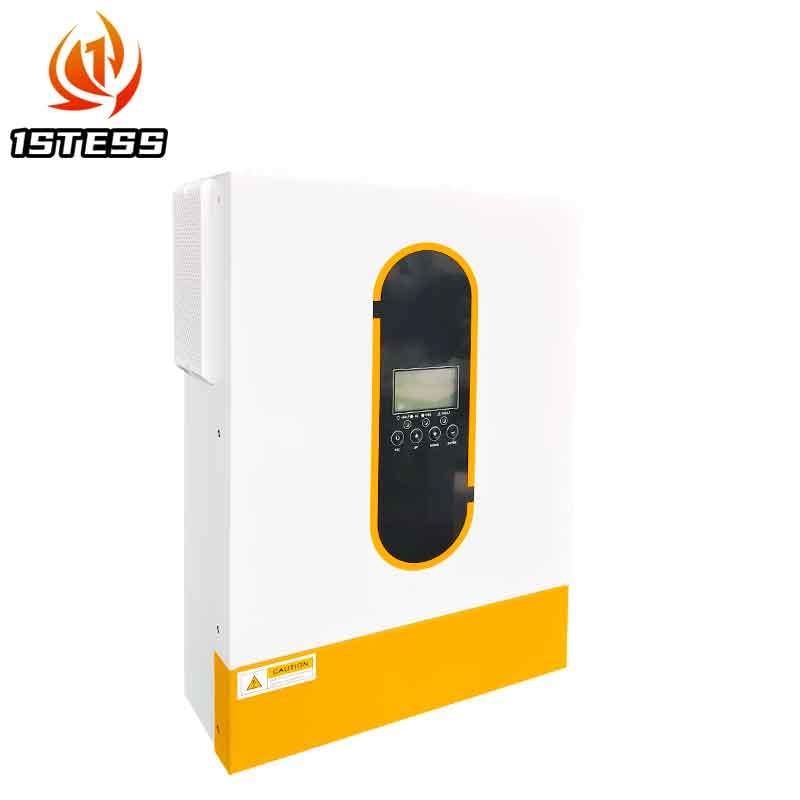

6200W 48V Hybrid Solar Inverter with MPPT Charge Controller

Name: 6200W 48V Hybrid Solar Inverter with MPPT Charge Controller
Brand: Shenzhen First Tech Co., Ltd.
SKU: EM-T (PV60-500VDC) EM6200T-48L
Price: 350.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: 1stess

Certification: CE, IEC

Model Number: EM-T (PV60-500VDC) EM6200T-48L

Document: EM6200T-48L.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: To be negotiated

Packaging Details: carton box

Delivery Time: 30 days

Payment Terms: L/C,T/T

Supply Ability: 2000 pieces per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      48V hybrid solar inverter, 6200W solar inverter with MPPT, off-grid hybrid inverter with charge controller


Charging Mode:	MPPT	Operating Temperature:	-10°C To 50°C
Inverter Type:	Hybrid Solar Inverter	Frequency:	50Hz/60Hz
Output Voltage:	48VDC	Size:	438312122mm

Charging Mode:	MPPT
Operating Temperature:	-10°C To 50°C
Inverter Type:	Hybrid Solar Inverter
Frequency:	50Hz/60Hz
Output Voltage:	48VDC
Size:	438312122mm

Description

6200W 48V Hybrid Solar Inverter with MPPT Charge Controller

Pure Sine Wave On/Off Grid 6200W Single Phase Hybrid Solar Inverter

48V 6.2kW Hybrid Solar Inverter with MPPT Charge Controller

Key Attributes

Attribute	Value
Charging Mode	MPPT
Operating Temperature	-10°C To 50°C
Inverter Type	Hybrid Solar Inverter
Frequency	50Hz/60Hz
Output Voltage	48VDC
Size	438×312×122mm

Product Features

Dual output for smart load management
Lithium battery activation function by PV or Utility
Compatible with LiFePO4 battery via RS485
PV Input 500Vdc Max
Built-in MPPT 120A
Capable to work without battery
Detachable dust cover for harsh environments
WiFi remote monitoring optional
Support multiple output priority: UTL, SOL, SBU, SUB
EQ function to optimize battery performance and extend lifecycle

Technical Specifications

Model	EM6200T-48L
Phase	1-Phase In/1-Phase Out
Maximum PV input power	6500W
Nominal Voltage	230VAC
Waveform	Pure Sine wave
Battery Voltage	48VDC
Communication Port	RS485(RJ45)/RS232(DB9)
Solar Charger Type	MPPT
Dimensions (D × W × H)	438×312×122mm
