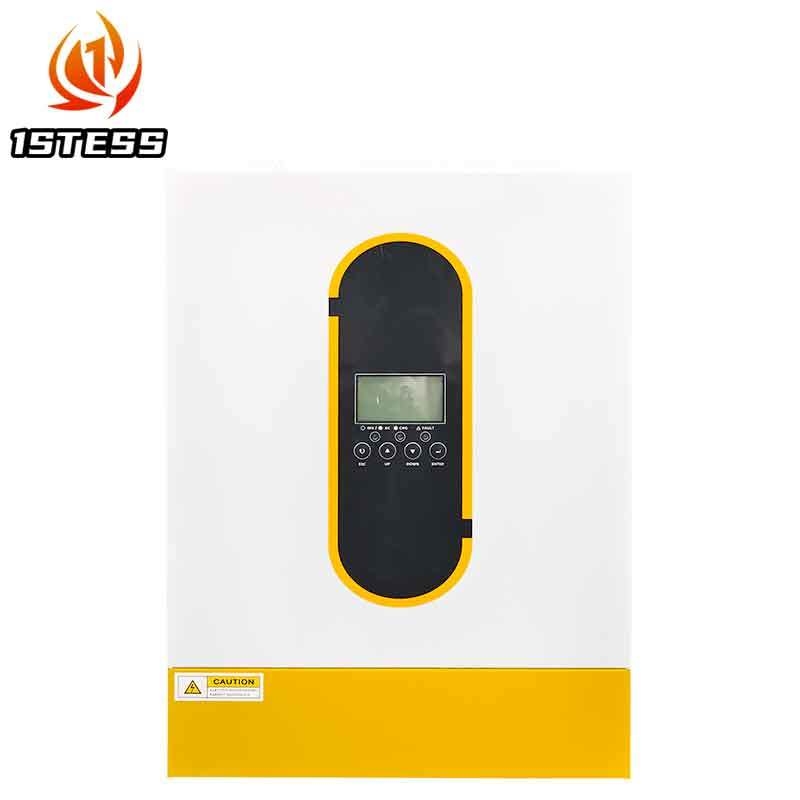

48V 6.2kW Hybrid Solar Inverter MPPT Pure Sine Wave Off Grid

Name: 48V 6.2kW Hybrid Solar Inverter MPPT Pure Sine Wave Off Grid
Brand: Shenzhen First Tech Co., Ltd.
SKU: EM-T (PV60-500VDC) EM6200T-48L
Price: 350.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: 1stess

Certification: CE, IEC

Model Number: EM-T (PV60-500VDC) EM6200T-48L

Document: EM6200T-48L.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: To be negotiated

Packaging Details: carton box

Delivery Time: 30 days

Payment Terms: L/C,T/T

Supply Ability: 2000 pieces per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      48V hybrid solar inverter MPPT, 6.2kW off grid inverter pure sine wave, hybrid solar inverter with warranty


Charging Mode:	MPPT	Operating Temperature:	-10°C To 50°C
Inverter Type:	Hybrid Solar Inverter	Frequency:	50Hz/60Hz
Output Voltage:	48VDC	Size:	438312122mm

Charging Mode:	MPPT
Operating Temperature:	-10°C To 50°C
Inverter Type:	Hybrid Solar Inverter
Frequency:	50Hz/60Hz
Output Voltage:	48VDC
Size:	438312122mm

Description

48V 6.2kW Hybrid Solar Inverter MPPT Pure Sine Wave Off Grid

48V Single Phase Solar Inverter 6200W Hybrid Inverter Pure Sine Wave MPPT Dual Output Off Grid 48V 6.2kw Hybrid Solar Inverter

Product Attributes

Attribute	Value
Charging Mode	MPPT
Operating Temperature	-10°C To 50°C
Inverter Type	hybrid solar inverter
Frequency	50Hz/60Hz
Output Voltage	48VDC
Size	438312122mm

Product Features

Dual output for smart load management
Lithium battery activation function by PV or Utility
Compatible work with LiFePO4 battery via RS485
PV Input 500Vdc Max
Built-in MPPT 120A
Capable to work without battery
Detachable dust cover for harsh environment
Wifi remote monitoring optional
Support multiple output priority: UTL, SOL, SBU, SUB
EQ function to optimize battery performance and extend lifecycle

Technical Specifications

MODEL	EM6200T-48L
Phase	1-Phase In/1-Phase Out
Maximum PV input power	6500W
Nominal Voltage	230VAC
Waveform	Pure Sine wave
Battery Voltage	48VDC
Communication Port	RS485(RJ45)/RS232(DB9)
Solar Charger TYPE	MPPT
Dimension, D x W x H(mm)	438x312x122

Product Gallery

Tags:

Pure Sine Wave Hybrid Solar Inverter MPPT Charging Mode and Acceptable Input Voltage Range 170-280VAC or 90-280VAC 5.5kW 6.2kW
