Product Details
Place of Origin: China
Brand Name: 1stess
Certification: CE, IEC

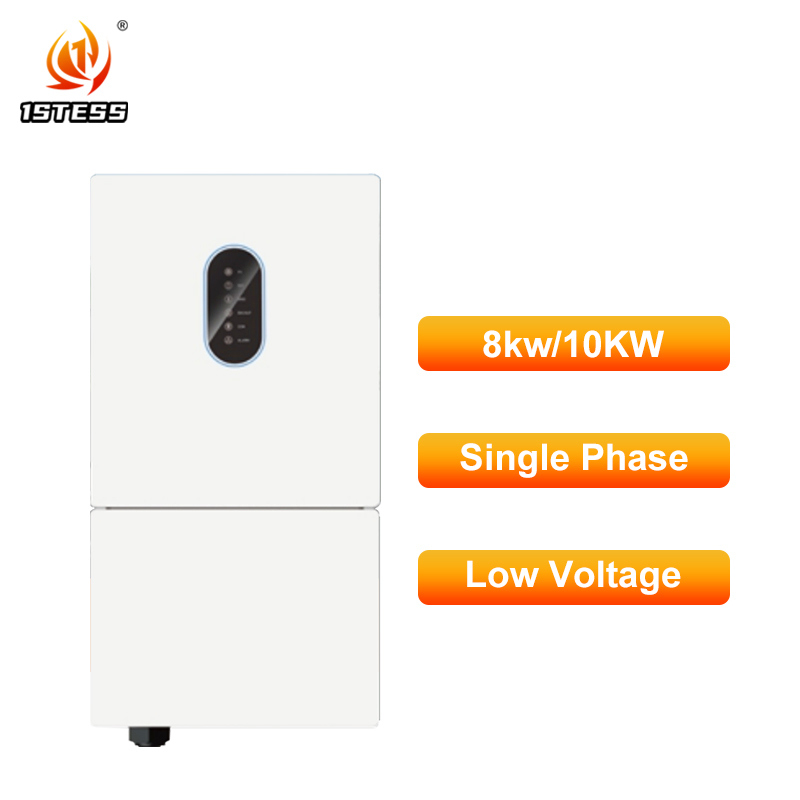

Model Number: SP10KL
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: To be negotiated
Packaging Details: carton box
Delivery Time: 30 days
Payment Terms: L/C,T/T
Supply Ability: 2000 pieces per month
Charging Mode: |
MPPT |
Operating Temperature: |
-10°C To 50°C |
Inverter Type: |
Off Grid Inverter |
Frequency: |
50Hz/60Hz |
Output Voltage: |
48VDC |
Communication Interface: |
RS485/CAN/USB |
Charging Mode: |
MPPT |
Operating Temperature: |
-10°C To 50°C |
Inverter Type: |
Off Grid Inverter |
Frequency: |
50Hz/60Hz |
Output Voltage: |
48VDC |
Communication Interface: |
RS485/CAN/USB |
| MODEL | SP8KL | SP10KL |
|---|---|---|
| Nominal Battery Voltage | 48VDC | 48VDC |
| Mounting Method | Wall Bracket | Wall Bracket |
| Battery Type | Lithium-ion/Lead-acid | Lithium-ion/Lead-acid |
| Nos.of MPPT | 3 | 3 |
| Nominal Output Voltage | 220V/230/240V,L+N+PE | 220V/230/240V,L+N+PE |
| Battery Voltage Range | 40V-64V | 40V-64V |
| Rated Grid Frequency | 50Hz/60Hz | 50Hz/60Hz |
| Transfer Time | 10ms (typical) | 10ms (typical) |
| Nominal AC Output Power | 8000W | 10000W |
| Protection Degree | IP66 | IP66 |
| Max.AC Output Apparent Power | 8800VA | 110000VA |
| Weight | 39Kg | 39Kg |
| Dimensions (W*H*D) | 420mm*800mm*240mm | 420mm*800mm*240mm |
| Warranty | 5 Years/10 Years (Optional) | 5 Years/10 Years (Optional) |
| Display | LED,LCD | LED,LCD |
