Product Details
Place of Origin: China
Brand Name: 1stess
Certification: CE, IEC
Model Number: SP10KL
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: To be negotiated
Packaging Details: carton box
Delivery Time: 30 days
Payment Terms: L/C,T/T
Supply Ability: 2000 pieces per month
Charging Mode: |
MPPT |
Operating Temperature: |
-10°C To 50°C |
Inverter Type: |
Off Grid Inverter |
Frequency: |
50Hz/60Hz |
Output Voltage: |
48VDC |
Communication Interface: |
RS485/CAN/USB |
Charging Mode: |
MPPT |
Operating Temperature: |
-10°C To 50°C |
Inverter Type: |
Off Grid Inverter |
Frequency: |
50Hz/60Hz |
Output Voltage: |
48VDC |
Communication Interface: |
RS485/CAN/USB |
| MODEL | SP8KL | SP10KL |
|---|---|---|
| Nominal Battery Voltage | 48VDC | 48VDC |
| Mounting Method | Wall Bracket | Wall Bracket |
| Battery Type | Lithium-ion/Lead-acid | Lithium-ion/Lead-acid |
| Nos.of MPPT | 3 | 3 |
| Nominal Output Voltage | 220V/230/240V,L+N+PE | 220V/230/240V,L+N+PE |
| Battery Voltage Range | 40V-64V | 40V-64V |
| Rated Grid Frequency | 50Hz/60Hz | 50Hz/60Hz |
| Transfer Time | 10ms (typical) | 10ms (typical) |
| Nominal AC Output Power | 8000W | 10000W |
| Protection Degree | IP66 | IP66 |
| Max.AC Output Apparent Power | 8800VA | 110000VA |
| Weight | 39Kg | 39Kg |
| Dimensions (W*H*D) | 420mm*800mm*240mm | 420mm*800mm*240mm |
| Warranty | 5 Years/10 Years (Optional) | 5 Years/10 Years (Optional) |
| Display | LED,LCD | LED,LCD |

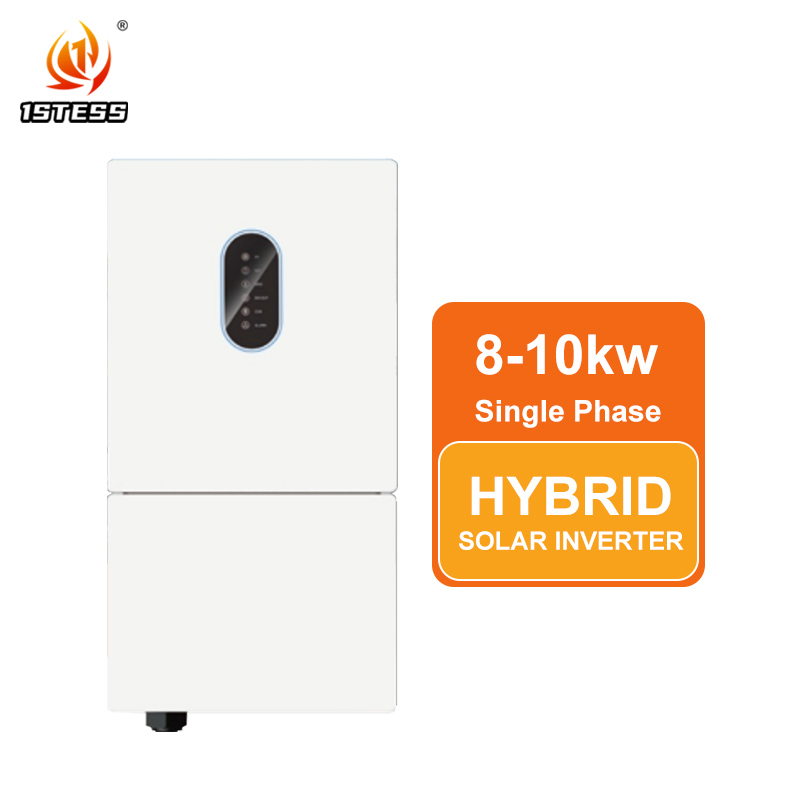

Embodying French innovation, the SP8KL and SP10KL inverters offer superior efficiency and reliability for residential solar systems.
It remains below 3% at full load, ensuring clean power for sensitive appliances.
Yes, it meets NF C15-100 and other relevant standards.
It operates efficiently down to -23°C, making it suitable for France's varied weather.
Yes, it features CAN and RS485 interfaces for seamless integration.
For the SP10KL, it reaches 14,000W, providing ample backup power.
Yes, it includes AC overcurrent protection for enhanced safety.
Its compact and silent operation makes it ideal for preserving architectural integrity.
Yes, it features a built-in DC switch for easy maintenance.
It uses fan cooling to maintain optimal performance during peak usage.
Its high efficiency, compliance with local standards, and elegant design make it a standout choice for modern solar systems.
Designed for South Korea's tech-savvy consumers and dense urban areas, the SP8KL and SP10KL inverters combine smart features with robust performance.
It achieves up to 97% efficiency, ensuring maximum energy savings.
Yes, it supports 220V/230V/240V and 60Hz frequencies.
It includes anti-islanding protection to disconnect from the grid during outages.
Yes, it is fully compatible with lithium-ion batteries.
It handles up to 32A, ensuring compatibility with high-capacity solar panels.
Yes, it features Bluetooth and app connectivity for convenient tracking.
Absolutely! It functions reliably in 0-100% relative humidity.
It weighs approximately 42kg, making it manageable for installation.
Yes, it detects and prevents leakage currents for safety.
Its smart features, high efficiency, and compact design align perfectly with South Korea's innovative energy landscape.
Built to endure Russia's harsh winters and vast territories, the SP8KL and SP10KL inverters deliver reliable solar energy conversion and backup power.
It performs efficiently from -28°C to 58°C, ensuring year-round reliability.
Yes, it supports 220V/230V/240V, fitting local requirements.
With an adjustable grid voltage range of 145V-305V, it adapts to unstable grids.
Yes, it is compatible with both lithium-ion and lead-acid batteries.
For the SP10KL, it reaches 215A, enabling fast recharge times.
With an IP66 rating, it is fully protected against environmental elements.
Yes, its wide MPPT voltage range and rugged build make it ideal for off-grid applications.
It complies with GOST-R and other Russian safety standards.
Yes, it features an optional LCD display for easy access to system data.
Its ability to operate in extreme cold, high efficiency, and robust construction make it indispensable for energy security.
