6.2KW Solar Power Inverter 500VDC Max PV Input AC Charge 80A Total Charge 120A

Name: 6.2KW Solar Power Inverter 500VDC Max PV Input AC Charge 80A Total Charge 120A
Brand: Shenzhen First Tech Co., Ltd.
SKU: EM-T (PV60-500VDC) 5500-48PL
Price: 350.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: 1stess

Certification: CE, IEC

Model Number: EM-T (PV60-500VDC) 5500-48PL

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: To be negotiated

Packaging Details: carton box

Delivery Time: 30 days

Payment Terms: L/C,T/T

Supply Ability: 2000 pieces per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          6.2KW hybrid solar inverter, 500VDC solar power inverter, 80A charge off-grid inverter


Charging Mode:	MPPT	Operating Temperature:	-10°C To 50°C
Inverter Type:	Off Grid Inverter	Frequency:	50Hz/60Hz
Nominal Output Voltage:	220VAC/230/240VAC	Communication Interface:	RS232+RS485+ External CT Port
Acceptable Input Voltage Range:	170-280VAC Or 90-280VAC	Size:	450300130mm
Waveform:	Pure Sine Wave	Output Current:	120A
Weight:	12kg

Charging Mode:	MPPT
Operating Temperature:	-10°C To 50°C
Inverter Type:	Off Grid Inverter
Frequency:	50Hz/60Hz
Nominal Output Voltage:	220VAC/230/240VAC
Communication Interface:	RS232+RS485+ External CT Port
Acceptable Input Voltage Range:	170-280VAC Or 90-280VAC
Size:	450300130mm
Waveform:	Pure Sine Wave
Output Current:	120A
Weight:	12kg

Description

6.2KW Solar Power Inverter 500VDC Max PV Input AC Charge 80A Total Charge 120A

6.2KW Solar Power Inverter with 500VDC Max PV Input and 120A Total Charge

High-performance hybrid solar inverter designed for residential and commercial applications, featuring pure sine wave output, flexible parallel expansion, and advanced battery compatibility.

Key Features

6.2KW Pure Sine Wave Output - Rated power 6.2KVA/6.2KW with surge capacity up to 12400VA and power factor 1.0, compatible with all household and office appliances
Flexible Parallel Expansion - Supports up to 12 units in parallel for single-phase or three-phase configurations, easily scaling from residential to commercial applications
High PV Input Voltage (500VDC Max) - MPPT voltage range 60-450VDC, compatible with high-voltage solar panels for improved system efficiency
Built-in 120A High-Current MPPT Controller - Maximum solar input current 27A with 120A solar charge capacity for rapid and efficient photovoltaic energy harvesting
Advanced Lithium Battery Compatibility - Supports Li-ion/LiFePO4 battery activation via PV or utility power with RS485 communication for BMS integration
Multiple Output Priority Modes - Selectable UTL, SOL, SBU, and SUB operation modes to adapt to various usage scenarios and energy requirements
Battery-less Operation - Can operate without battery storage, reducing initial investment costs and increasing system flexibility

Advanced Performance Features

Wide AC Input Range	170-280VAC (PC mode) / 90-280VAC (home appliance mode), adapts to unstable grid conditions
Auto Frequency Sensing	Automatically detects 50/60Hz operation
High Efficiency	Peak efficiency up to 94% for optimal energy conversion
Fast Transfer Time	10ms (PC mode) / 20ms (home appliance mode) for uninterrupted power to critical loads
Comprehensive Protection	Overload protection (5s @ ≥140% load; 10s @ 110%-140% load), overcharge protection (63VDC)
Multiple Communication Ports	RS232 & RS485, plus plug-and-play WiFi Dongle support for remote monitoring and control
Detachable Dust Cover	Protects against harsh environments, extending product lifespan
Equalization (EQ) Function	Optimizes battery performance and prolongs battery life

Technical Specifications

Specification	GM5500-48PL	GM6200-48PL
Phase Configuration	1-Phase In / 1-Phase Out	1-Phase In / 1-Phase Out
Maximum PV Input Power	5500W	6500W
Nominal Output Voltage	220/230/240V AC	220/230/240V AC
Output Waveform	Pure Sine Wave	Pure Sine Wave
Battery Voltage	48V DC	48V DC
Communication Ports	RS232 + RS485 + External CT Port	RS232 + RS485 + External CT Port
Maximum Solar Charge Current	100A	120A
Dimensions (D x W x H)	448 × 315 × 122 mm	450 × 300 × 130 mm

Product Images

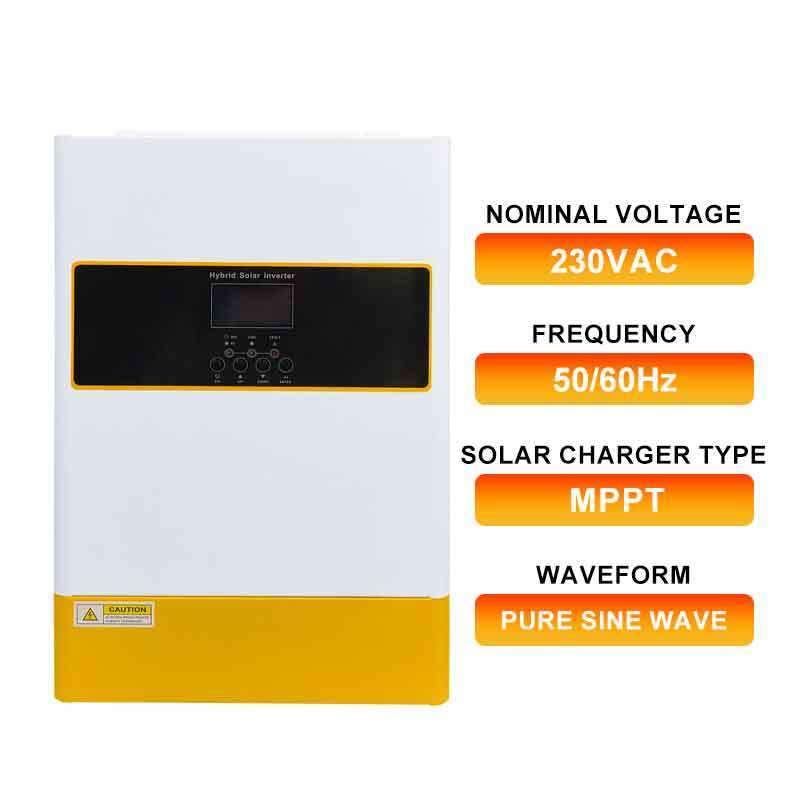

Front View

Side View

Display Panel

Connection Terminals

Installation Diagram
