48V 6200W Pure Sine Wave Inverter with MPPT Charging
High-performance 48V pure sine wave inverter with integrated 120A MPPT solar charger, designed for residential and light commercial applications.
Key Features
- High-power single-phase output - 6200VA/6200W capacity suitable for residential and light commercial use
- Dual independent outputs - Separate power channels for personal computers (10ms transfer) and home appliances (20ms transfer)
- Wide PV voltage range - MPPT operating range 60-500 VDC, maximum open-circuit voltage 500 VDC
- High charging current - Solar charge up to 120A, AC charge up to 80A, combined maximum 120A
- Lithium battery ready - Supports lithium battery activation and RS485 communication for BMS integration
- Broad AC input tolerance - Accepts 90-280 VAC to handle unstable grid conditions
- Pure sine wave output - Safe operation for sensitive electronics and motor-driven appliances
- High efficiency - Peak efficiency of 94% for reduced energy loss
Technical Specifications
| Feature |
Specification |
| Phase |
1-phase in / 1-phase out |
| Rated Output Voltage |
220/230 VAC ±5% |
| Frequency |
50/60 Hz auto-sensing |
| Battery Voltage |
48 VDC |
| Float Charge Voltage |
54 VDC |
| Overcharge Protection |
63 VDC |
| Charging Method |
CC/CV (Constant Current/Constant Voltage) |
| Solar Charger Type |
MPPT (Maximum Power Point Tracking) |
| Max PV Input Power |
6500 W |
| Max PV Open-Circuit Voltage |
500 VDC |
| Max Solar Input Current |
27 A |
| Max Solar Charge Current |
120 A |
| Max AC Charge Current |
80 A |
| Communication Ports |
RS485 (RJ45) / RS232 (DB9) |
| Operating Temperature |
-10°C to +50°C |
| Humidity |
5% - 95% RH (non-condensing) |
| Dimensions (D x W x H) |
438 x 312 x 122 mm |
Advanced Features
- MPPT solar charge management - Maximum power point tracking for optimal energy harvest
- Intelligent dual-output distribution - Load-specific transfer times for optimized protection
- Lithium battery activation & communication - Wake-up capability and BMS data exchange
- Overload protection - Automatic shutdown at 140% load (5s) or 100-140% load (10s)
- Wide-voltage adaptability - Automatic adjustment for 170-280 VAC (PC mode) or 90-280 VAC (appliance mode)
- Battery-free operation - Capable of operating without battery installation
- Detachable dust cover - Protection for harsh environments
- Optional WiFi monitoring - Remote system monitoring capability
- Multiple output priorities - UTL, SOL, SBU, SUB modes
- Equalization function - Battery performance optimization and lifecycle extension

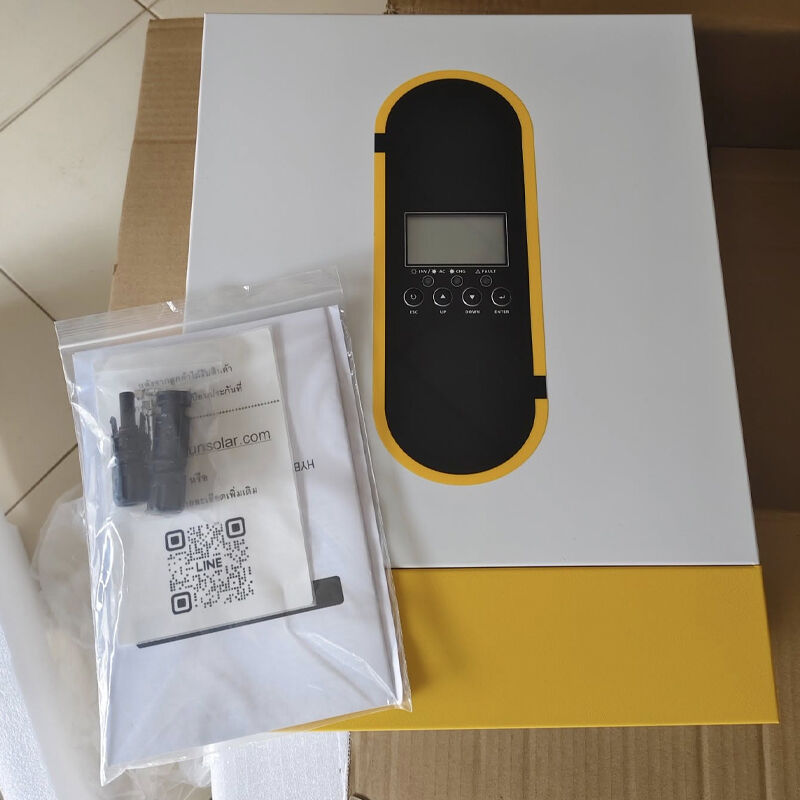

Product Images
Regional Application FAQs
Philippines Applications
Is the EM6200T-48L suitable for areas in the Philippines with frequent typhoons and power outages?
Absolutely. Its 10ms transfer time ensures critical devices like computers and medical equipment experience near-uninterrupted power. The robust build and detachable dust cover offer extra protection against harsh, humid environments common during typhoon seasons.
Can I use this inverter with a generator during long-term brownouts?
Yes. The inverter seamlessly accepts AC input from generators within its voltage range (90-280VAC), making it an ideal backbone for a reliable home energy system during extended outages.
We have strong sun but also sudden rain. How does the MPPT handle changing weather?
The advanced 120A MPPT charger continuously tracks the Maximum Power Point, optimizing solar energy harvest even during rapidly fluctuating conditions—from full sun to partial clouds—ensuring you get the most power possible every day.
Is it compatible with popular lithium batteries available in the Philippines?
Yes, it features built-in RS485 communication for seamless compatibility with major brands of LiFePO4 batteries, allowing for intelligent battery management and extending battery life.
Can I power my entire house with this 6.2kW unit?
With 6200VA/6200W of pure sine wave output and a 12400VA surge capacity, it can easily run a typical Filipino household, including air conditioners, refrigerators, TVs, and lights simultaneously.
Does it require a battery to function?
No. A key feature is its ability to work without a battery, converting solar PV power directly for your home use, which is perfect for reducing initial setup costs.
Vietnam Applications
The voltage in rural Vietnam can be unstable. Can this inverter handle it?
Yes. It accepts a very wide AC input voltage range (90-280VAC), specifically designed to handle the unstable grid voltage common in rural and industrial areas, protecting your appliances.
Can I use this for a small workshop or farm?
Certainly. The dual output feature allows for smart load management. You can prioritize essential workshop machinery on the main output and use the second output for less critical loads, optimizing your power usage.
Is the Wi-Fi monitoring module easy to install and use?
Yes, the optional Wi-Fi module is plug-and-play. You can easily monitor your system's performance, energy savings, and status in real-time from your smartphone, which is perfect for tech-savvy users in Vietnam.
How does the "Lithium Battery Activation by PV" feature help me?
If your lithium battery ever enters a protection mode (deeply discharged), you don't need grid power to reactivate it. Solar energy alone can wake it up, ensuring self-sufficiency.
What is the EQ function, and why is it important for my battery?
The Equalization (EQ) function helps maintain the health of lead-acid batteries by preventing stratification and sulfation, which is crucial in Vietnam's hot climate that can accelerate battery degradation.
With high humidity, will the inverter's performance be affected?
It is designed to operate in 5% to 95% relative humidity (non-condensing), making it well-suited for Vietnam's humid climate throughout the year.
Indonesia Applications
Is this inverter a good solution for my off-grid home in a remote Indonesian island?
Perfectly. It can run without a battery using only solar power and has a massive 120A solar charge controller, making it the heart of a reliable, independent power system for island living.
Can it withstand the hot and humid coastal environment?
Yes. Its anti-corrosion components and detachable dust cover protect against salty, humid air. The operating temperature range of -10°C to 50°C is more than sufficient for the Indonesian climate.
How does the dual output benefit a typical Indonesian household?
You can set one output for critical, always-on loads (like a refrigerator and lights) and the other for non-essential loads (like a water heater), which can be automatically shed when solar power is low, ensuring smart energy management.
What happens during a grid blackout?
The inverter will switch to solar and battery power in just 10ms (for sensitive electronics), keeping your home powered without interruption.
Is the 500Vdc Max PV input sufficient for Indonesian solar conditions?
Yes, this high voltage allows for longer strings of solar panels, reducing wiring costs and improving efficiency, which is ideal for larger rooftop installations common in Indonesia.
Are the communication ports (RS485/RS232) useful for system expansion?
Yes, these ports allow you to connect to external monitoring systems or BMS for lithium batteries, providing flexibility for future upgrades and professional system integration.
