High Power Home Solar Inverter 6.2kW 48V 500V MPPT 120A Charging Dual Output
Product Overview
This high-performance 6.2kW solar inverter delivers reliable power for residential and light commercial applications with advanced features for optimal energy management and system protection.
Key Features
- High-power single-phase output - 6200VA/6200W capacity suitable for various applications
- Dual independent outputs - Separate power for computers (10ms transfer) and appliances (20ms transfer)
- Wide PV voltage range - MPPT operating range 60-500 VDC with 500 VDC max open-circuit voltage
- High charging current - Solar charge up to 120A, AC charge up to 80A, combined max 120A
- Lithium battery ready - Supports activation via PV or utility with RS485 BMS communication
- Broad AC input tolerance - Accepts 90-280 VAC for unstable grid conditions
- Pure sine wave output - Safe for sensitive electronics and motor-driven appliances
- High efficiency - Peak efficiency 94% for reduced energy loss
Technical Specifications
| Feature |
Specification |
| Model |
EM6200T-48L |
| Phase |
1-phase in / 1-phase out |
| Rated Output Voltage |
220/230 VAC ±5% |
| Frequency |
50/60 Hz auto-sensing |
| Battery Voltage |
48 VDC |
| Max PV Input Power |
6500 W |
| Max PV Open-circuit Voltage |
500 VDC |
| Max Solar Charge Current |
120 A |
| Max AC Charge Current |
80 A |
| Communication Ports |
RS485 (RJ45) / RS232 (DB9) |
| Operating Temperature |
-10°C to +50°C |
| Dimensions (D x W x H) |
438 x 312 x 122 mm |
Advanced Capabilities
- MPPT solar charge management - Maximum power point tracking for optimal energy harvest
- Intelligent dual-output distribution - Different transfer times based on load type
- Lithium battery activation & communication - Wakes dormant batteries and exchanges BMS data
- Overload protection - Automatic shutdown for overload conditions
- Wide-voltage adaptability - 170-280 VAC (PC mode) or 90-280 VAC (appliance mode)
- Battery-free operation - Can operate without battery using direct solar power
- Multiple output priority support - UTL, SOL, SBU, SUB modes
- EQ function - Battery equalization for performance optimization
- Optional WiFi monitoring - Remote system monitoring capability

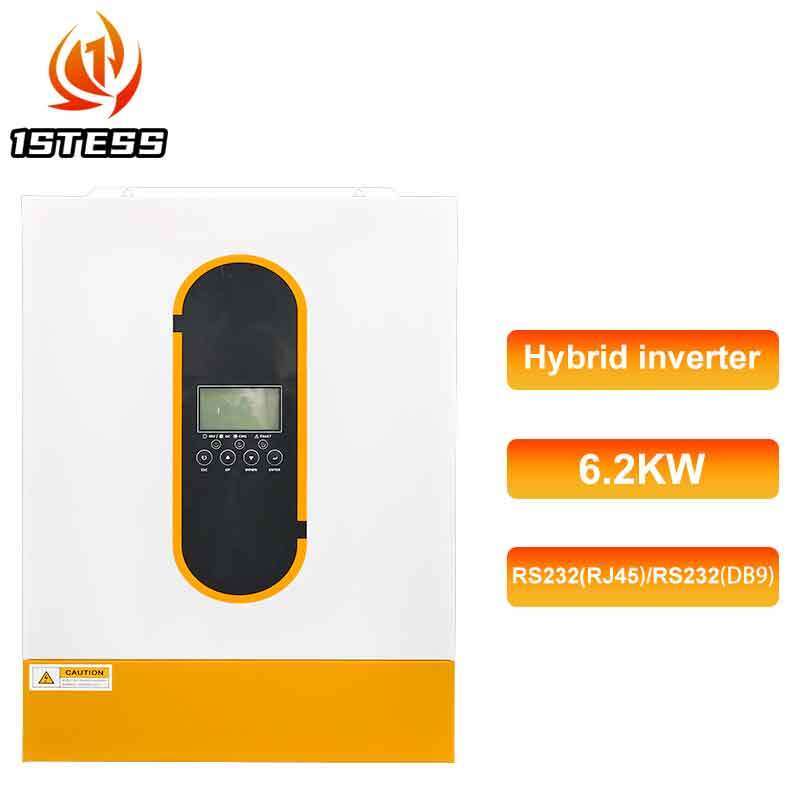

Product Images
Regional Application FAQs
Philippines Applications
Is the EM6200T-48L suitable for areas in the Philippines with frequent typhoons and power outages?
Absolutely. Its 10ms transfer time ensures critical devices like computers and medical equipment experience near-uninterrupted power. The robust build and detachable dust cover offer extra protection against harsh, humid environments common during typhoon seasons.
Can I use this inverter with a generator during long-term brownouts?
Yes. The inverter seamlessly accepts AC input from generators within its voltage range (90-280VAC), making it an ideal backbone for a reliable home energy system during extended outages.
We have strong sun but also sudden rain. How does the MPPT handle changing weather?
The advanced 120A MPPT charger continuously tracks the Maximum Power Point, optimizing solar energy harvest even during rapidly fluctuating conditions—from full sun to partial clouds—ensuring you get the most power possible every day.
Is it compatible with popular lithium batteries available in the Philippines?
Yes, it features built-in RS485 communication for seamless compatibility with major brands of LiFePO4 batteries, allowing for intelligent battery management and extending battery life.
Can I power my entire house with this 6.2kW unit?
With 6200VA/6200W of pure sine wave output and a 12400VA surge capacity, it can easily run a typical Filipino household, including air conditioners, refrigerators, TVs, and lights simultaneously.
Does it require a battery to function?
No. A key feature is its ability to work without a battery, converting solar PV power directly for your home use, which is perfect for reducing initial setup costs.
Vietnam Applications
The voltage in rural Vietnam can be unstable. Can this inverter handle it?
Yes. It accepts a very wide AC input voltage range (90-280VAC), specifically designed to handle the unstable grid voltage common in rural and industrial areas, protecting your appliances.
Can I use this for a small workshop or farm?
Certainly. The dual output feature allows for smart load management. You can prioritize essential workshop machinery on the main output and use the second output for less critical loads, optimizing your power usage.
Is the Wi-Fi monitoring module easy to install and use?
Yes, the optional Wi-Fi module is plug-and-play. You can easily monitor your system's performance, energy savings, and status in real-time from your smartphone, which is perfect for tech-savvy users in Vietnam.
How does the "Lithium Battery Activation by PV" feature help me?
If your lithium battery ever enters a protection mode (deeply discharged), you don't need grid power to reactivate it. Solar energy alone can wake it up, ensuring self-sufficiency.
What is the EQ function, and why is it important for my battery?
The Equalization (EQ) function helps maintain the health of lead-acid batteries by preventing stratification and sulfation, which is crucial in Vietnam's hot climate that can accelerate battery degradation.
With high humidity, will the inverter's performance be affected?
It is designed to operate in 5% to 95% relative humidity (non-condensing), making it well-suited for Vietnam's humid climate throughout the year.
Indonesia Applications
Is this inverter a good solution for my off-grid home in a remote Indonesian island?
Perfectly. It can run without a battery using only solar power and has a massive 120A solar charge controller, making it the heart of a reliable, independent power system for island living.
Can it withstand the hot and humid coastal environment?
Yes. Its anti-corrosion components and detachable dust cover protect against salty, humid air. The operating temperature range of -10°C to 50°C is more than sufficient for the Indonesian climate.
How does the dual output benefit a typical Indonesian household?
You can set one output for critical, always-on loads (like a refrigerator and lights) and the other for non-essential loads (like a water heater), which can be automatically shed when solar power is low, ensuring smart energy management.
What happens during a grid blackout?
The inverter will switch to solar and battery power in just 10ms (for sensitive electronics), keeping your home powered without interruption.
Is the 500Vdc Max PV input sufficient for Indonesian solar conditions?
Yes, this high voltage allows for longer strings of solar panels, reducing wiring costs and improving efficiency, which is ideal for larger rooftop installations common in Indonesia.
Are the communication ports (RS485/RS232) useful for system expansion?
Yes, these ports allow you to connect to external monitoring systems or BMS for lithium batteries, providing flexibility for future upgrades and professional system integration.
