Single Phase Off Grid Solar Inverter 6.2kW 230V 500V PV Input Support Lithium Battery Comms

Name: Single Phase Off Grid Solar Inverter 6.2kW 230V 500V PV Input Support Lithium Battery Comms
Brand: Shenzhen First Tech Co., Ltd.
SKU: EM-T (PV60-500VDC) EM6200T-48L
Price: 350.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: 1stess

Certification: CE, IEC

Model Number: EM-T (PV60-500VDC) EM6200T-48L

Document: EM6200T-48L.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: To be negotiated

Packaging Details: carton box

Delivery Time: 30 days

Payment Terms: L/C,T/T

Supply Ability: 2000 pieces per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      Single Phase Off Grid Solar Inverter, 6.2kW Solar Inverter with Lithium Battery, 230V Off Grid Inverter 500V PV


Charging Mode:	MPPT	Operating Temperature:	-10°C To 50°C
Inverter Type:	Hybrid Solar Inverter	Frequency:	50Hz/60Hz
Output Voltage:	48VDC	Size:	438312122mm

Charging Mode:	MPPT
Operating Temperature:	-10°C To 50°C
Inverter Type:	Hybrid Solar Inverter
Frequency:	50Hz/60Hz
Output Voltage:	48VDC
Size:	438312122mm

Description

Single Phase Off Grid Solar Inverter 6.2kW 230V 500V PV Input Support Lithium Battery Comms

Single Phase Off Grid Solar Inverter 6.2kW 230V

High-performance 6200VA/6200W single-phase off-grid solar inverter with 500V PV input and lithium battery support. Ideal for residential and light commercial applications requiring reliable backup power and solar energy utilization.

Key Features

High-power output: 6200VA/6200W pure sine wave output suitable for sensitive electronics
Dual independent outputs: Separate circuits for computers (10ms transfer) and appliances (20ms transfer)
Advanced MPPT charging: 60-500 VDC operating range with 120A solar charge capacity
Lithium battery ready: Supports activation via PV or utility with RS485 BMS communication
Wide voltage tolerance: 90-280 VAC input range for unstable grid conditions
High efficiency: 94% peak efficiency for minimal energy loss
Battery-free operation: Can function without battery using direct solar power
Multiple output priorities: UTL, SOL, SBU, SUB modes for flexible energy management

Technical Specifications

Model	EM6200T-48L
Phase Configuration	1-Phase In / 1-Phase Out
Rated Output Voltage	220/230 VAC ±5%
Frequency	50/60 Hz auto-sensing
Battery Voltage	48 VDC
Max PV Input Power	6500 W
Max PV Open-Circuit Voltage	500 VDC
Max Solar Charge Current	120 A
Max AC Charge Current	80 A
Communication Ports	RS485 (RJ45) / RS232 (DB9)
Operating Temperature	-10°C to +50°C
Dimensions (D x W x H)	438 x 312 x 122 mm

Advanced Protection & Management

Overload protection: Shutdown after 5s @ ≥140% load, or 10s @ 100-140% load
Equalization function for optimized battery performance and extended lifecycle
Detachable dust cover for harsh environmental protection
Optional WiFi remote monitoring capability

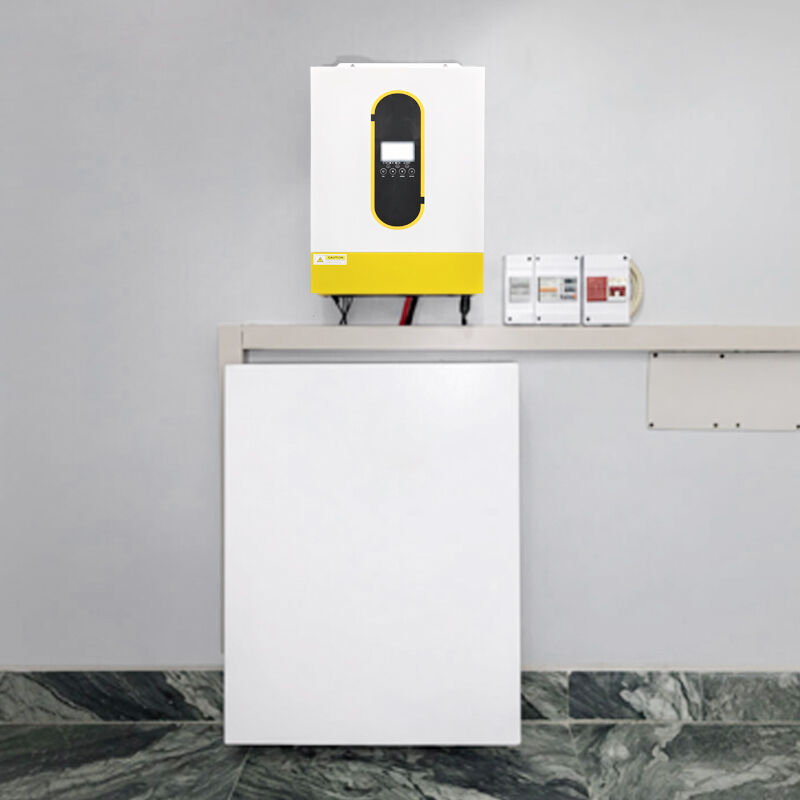

Product Images

Regional Application Solutions

Philippines Applications

Is the EM6200T-48L suitable for areas with frequent typhoons and power outages?

Absolutely. Its 10ms transfer time ensures critical devices like computers and medical equipment experience near-uninterrupted power. The robust build and detachable dust cover offer extra protection against harsh, humid environments common during typhoon seasons.

Can I use this inverter with a generator during long-term brownouts?

Yes. The inverter seamlessly accepts AC input from generators within its voltage range (90-280VAC), making it an ideal backbone for a reliable home energy system during extended outages.

Is it compatible with popular lithium batteries available in the Philippines?

Yes, it features built-in RS485 communication for seamless compatibility with major brands of LiFePO4 batteries, allowing for intelligent battery management and extending battery life.

Vietnam Applications

The voltage in rural Vietnam can be unstable. Can this inverter handle it?

Yes. It accepts a very wide AC input voltage range (90-280VAC), specifically designed to handle the unstable grid voltage common in rural and industrial areas, protecting your appliances.

Can I use this for a small workshop or farm?

Certainly. The dual output feature allows for smart load management. You can prioritize essential workshop machinery on the main output and use the second output for less critical loads, optimizing your power usage.

How does the "Lithium Battery Activation by PV" feature help me?

If your lithium battery ever enters a protection mode (deeply discharged), you don't need grid power to reactivate it. Solar energy alone can wake it up, ensuring self-sufficiency.

Indonesia Applications

Is this inverter a good solution for my off-grid home in a remote Indonesian island?

Perfectly. It can run without a battery using only solar power and has a massive 120A solar charge controller, making it the heart of a reliable, independent power system for island living.

Can it withstand the hot and humid coastal environment?

Yes. Its anti-corrosion components and detachable dust cover protect against salty, humid air. The operating temperature range of -10°C to 50°C is more than sufficient for the Indonesian climate.

What happens during a grid blackout?

The inverter will switch to solar and battery power in just 10ms (for sensitive electronics), keeping your home powered without interruption.

Tags:

Pure Sine Wave Hybrid Solar Inverter MPPT Charging Mode and Acceptable Input Voltage Range 170-280VAC or 90-280VAC 5.5kW 6.2kW
