6200W Home Solar Inverter 48V Battery System MPPT 120A Dual Output Pure Sine Wave

Name: 6200W Home Solar Inverter 48V Battery System MPPT 120A Dual Output Pure Sine Wave
Brand: Shenzhen First Tech Co., Ltd.
SKU: EM-T (PV60-500VDC) EM6200T-48L
Price: 350.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: 1stess

Certification: CE, IEC

Model Number: EM-T (PV60-500VDC) EM6200T-48L

Document: EM6200T-48L.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: To be negotiated

Packaging Details: carton box

Delivery Time: 30 days

Payment Terms: L/C,T/T

Supply Ability: 2000 pieces per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      6200W solar inverter 48V battery system, MPPT 120A dual output inverter, pure sine wave hybrid solar inverter


Charging Mode:	MPPT	Operating Temperature:	-10°C To 50°C
Inverter Type:	Hybrid Solar Inverter	Frequency:	50Hz/60Hz
Output Voltage:	48VDC	Size:	438312122mm

Charging Mode:	MPPT
Operating Temperature:	-10°C To 50°C
Inverter Type:	Hybrid Solar Inverter
Frequency:	50Hz/60Hz
Output Voltage:	48VDC
Size:	438312122mm

Description

6200W Home Solar Inverter 48V Battery System MPPT 120A Dual Output Pure Sine Wave

6200W Home Solar Inverter 48V Battery System

Product Overview

High-performance 6200VA/6200W pure sine wave inverter with MPPT solar charging, designed for residential and light commercial applications. Features dual independent outputs and comprehensive battery management capabilities.

Key Features

High-Power Output: 6200VA/6200W single-phase output suitable for home and commercial use
Dual Independent Outputs: Separate circuits for computers (10ms transfer) and appliances (20ms transfer)
Advanced MPPT Charging: 60-500 VDC operating range with 500 VDC maximum open-circuit voltage
Rapid Charging Capability: Solar charge up to 120A, AC charge up to 80A, combined maximum 120A
Lithium Battery Ready: Supports lithium battery activation and RS485 communication for BMS integration
Wide Voltage Tolerance: Accepts 90-280 VAC input for unstable grid conditions
Pure Sine Wave: Clean power output safe for sensitive electronics and motor-driven appliances
High Efficiency: Peak efficiency of 94% for minimal energy loss

Technical Specifications

Feature	Specification
Model	EM6200T-48L
Phase Configuration	1-phase in / 1-phase out
Rated Output Voltage	220/230 VAC ±5%
Frequency	50/60 Hz auto-sensing
Battery Voltage	48 VDC
Float Charge Voltage	54 VDC
Overcharge Protection	63 VDC
Charging Method	CC/CV (Constant Current/Constant Voltage)
Solar Charger Type	MPPT (Maximum Power Point Tracking)
Max PV Input Power	6500 W
Max PV Open-Circuit Voltage	500 VDC
Max Solar Input Current	27 A
Max Solar Charge Current	120 A
Max AC Charge Current	80 A
Communication Ports	RS485 (RJ45) / RS232 (DB9)
Operating Temperature	-10°C to +50°C
Humidity	5% - 95% RH (non-condensing)
Dimensions (D x W x H)	438 x 312 x 122 mm

Advanced Features

Smart Load Management: Dual output distribution with optimized transfer times
Lithium Battery Support: Activation function via PV or utility, compatible with LiFePO4 batteries
Battery-Free Operation: Capable of operating without battery connection
Environmental Protection: Detachable dust cover for harsh environments
Remote Monitoring: Optional WiFi connectivity for remote management
Output Priority Modes: Multiple modes including UTL, SOL, SBU, SUB
Battery Optimization: EQ function to enhance performance and extend battery lifecycle
Overload Protection: Automatic shutdown at 140% load (5s) or 100-140% load (10s)

Product Images

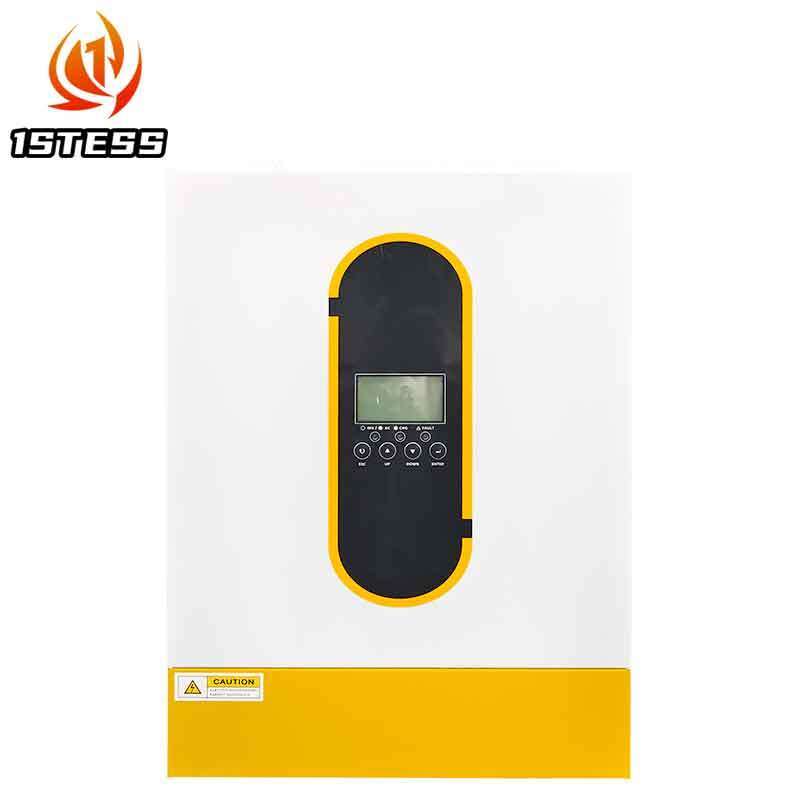

Front view with display and controls

Side view with ventilation and ports

Connection terminals and wiring points

Display panel with status indicators

Installation setup and mounting

Specifications and ratings details

Internal components and construction

Wiring diagram and connection schematic
