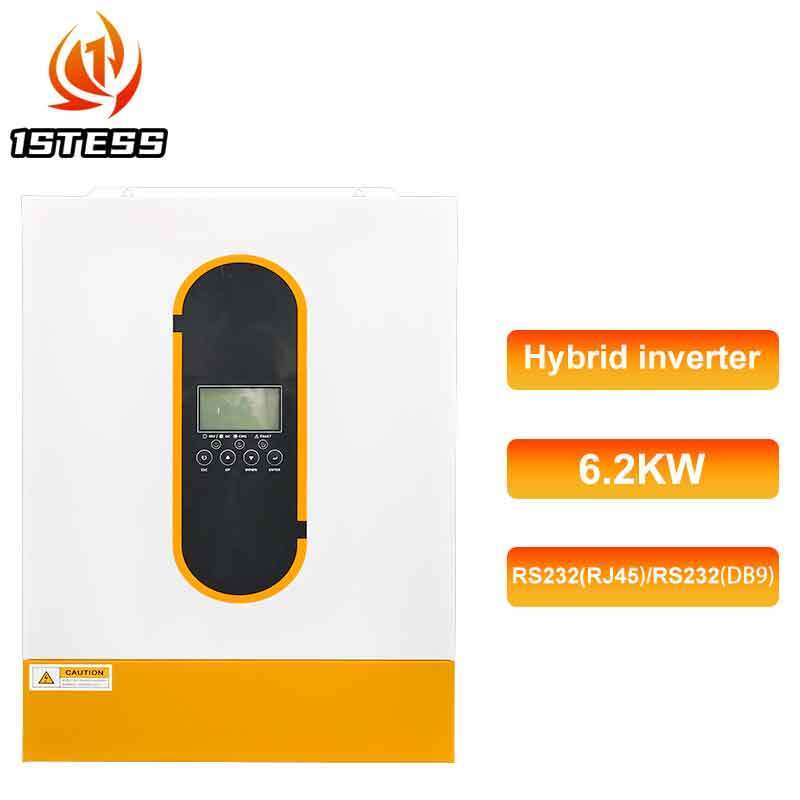

High Power Single Phase Inverter 6.2kW 94% Efficiency 500V MPPT 120A Charging Off Grid

Name: High Power Single Phase Inverter 6.2kW 94% Efficiency 500V MPPT 120A Charging Off Grid
Brand: Shenzhen First Tech Co., Ltd.
SKU: EM-T (PV60-500VDC) EM6200T-48L
Price: 350.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: 1stess

Certification: CE, IEC

Model Number: EM-T (PV60-500VDC) EM6200T-48L

Document: EM6200T-48L.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: To be negotiated

Packaging Details: carton box

Delivery Time: 30 days

Payment Terms: L/C,T/T

Supply Ability: 2000 pieces per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      6.2kW single phase inverter, off grid solar inverter 500V, hybrid inverter 120A charging


Charging Mode:	MPPT	Operating Temperature:	-10°C To 50°C
Inverter Type:	Hybrid Solar Inverter	Frequency:	50Hz/60Hz
Output Voltage:	48VDC	Size:	438312122mm

Charging Mode:	MPPT
Operating Temperature:	-10°C To 50°C
Inverter Type:	Hybrid Solar Inverter
Frequency:	50Hz/60Hz
Output Voltage:	48VDC
Size:	438312122mm

Description

High Power Single Phase Inverter 6.2kW 94% Efficiency 500V MPPT 120A Charging Off Grid

High Power Single Phase Inverter 6.2kW

Advanced 6200VA/6200W single-phase inverter with 94% peak efficiency, designed for residential and light commercial off-grid applications. Features 500V MPPT technology and 120A charging capability.

Key Features & Benefits

High-Power Output: 6200VA/6200W capacity suitable for residential and light commercial use
Dual Independent Outputs: Separate power distribution for personal computers (10ms transfer) and home appliances (20ms transfer)
Advanced MPPT Technology: 60-500 VDC operating range with 500 VDC maximum open-circuit voltage
Rapid Charging Capability: Solar charge up to 120A, AC charge up to 80A, combined maximum 120A
Lithium Battery Ready: Supports lithium battery activation via PV or utility with RS485 BMS communication
Wide Voltage Tolerance: Accepts 90-280 VAC input for unstable grid conditions
Pure Sine Wave Output: Safe operation for sensitive electronics and motor-driven appliances
High Efficiency: 94% peak efficiency minimizes energy loss

Technical Specifications

Feature	Specification
Phase Configuration	1-phase in / 1-phase out
Rated Output Voltage	220/230 VAC ±5%
Frequency	50/60 Hz auto-sensing
Battery Voltage	48 VDC
Float Charge Voltage	54 VDC
Overcharge Protection	63 VDC
Charging Method	CC/CV (Constant Current/Constant Voltage)
Solar Charger Type	MPPT (Maximum Power Point Tracking)
Max PV Input Power	6500 W
Max PV Open-Circuit Voltage	500 VDC
Max Solar Input Current	27 A
Max Solar Charge Current	120 A
Max AC Charge Current	80 A
Communication Ports	RS485 (RJ45) / RS232 (DB9)
Operating Temperature	-10°C to +50°C
Humidity	5% - 95% RH (non-condensing)
Dimensions (D x W x H)	438 x 312 x 122 mm

Advanced Protection & Control Features

MPPT Solar Charge Management: Optimizes energy harvest from PV panels
Intelligent Dual-Output Distribution: Custom transfer times based on load type
Lithium Battery Activation: Wakes dormant Li-batteries and communicates with BMS
Overload Protection: Automatic shutdown at 140% load (5s) or 100-140% load (10s)
Wide Voltage Adaptability: 170-280 VAC (PC mode) or 90-280 VAC (appliance mode)

Model: EM6200T-48L
Additional Features: Dual output smart load management, battery-less operation capability, detachable dust cover, optional WiFi remote monitoring, multiple output priority support (UTL, SOL, SBU, SUB), EQ function for battery optimization

Product Images
