Off-grid hybrid inverter, pure sine wave, 60-500V PV, MPPT, Li-activation, battery-less

Name: Off-grid hybrid inverter, pure sine wave, 60-500V PV, MPPT, Li-activation, battery-less
Brand: Shenzhen First Tech Co., Ltd.
SKU: EM (PV60-500VDC) 620048L
Price: 350.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: 1stess

Certification: CE, IEC

Model Number: EM (PV60-500VDC) 620048L

Document: EM1.5-6.2.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: To be negotiated

Packaging Details: carton box

Delivery Time: 30 days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: 2000 pieces per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      off-grid hybrid inverter pure sine wave, MPPT solar inverter battery-less, Li-activation hybrid inverter 60-500V PV


Charging Mode:	MPPT	Operating Temperature:	-10°C To 50°C
Inverter Type:	Hybrid Solar Inverter	Frequency:	50Hz/60Hz
Output Voltage:	48VDC	Size:	438295105mm

Charging Mode:	MPPT
Operating Temperature:	-10°C To 50°C
Inverter Type:	Hybrid Solar Inverter
Frequency:	50Hz/60Hz
Output Voltage:	48VDC
Size:	438295105mm

Description

Off-grid hybrid inverter, pure sine wave, 60-500V PV, MPPT, Li-activation, battery-less

Off-Grid Hybrid Inverter with Pure Sine Wave Output

Advanced off-grid hybrid inverter featuring pure sine wave output, wide 60-500V PV input range, built-in MPPT technology, lithium battery activation capability, and battery-less operation for versatile power solutions.

Key Advantages

Lithium Battery Activation via PV or Utility - Revives deeply discharged Li-ion batteries, preventing premature disposal and extending battery life
Operates Without Battery - Functions grid-connected or directly from PV, reducing initial costs for budget-conscious off-grid installations
Pure Sine Wave Output - Delivers clean power for all load types including inductive/capacitive loads, air conditioners, refrigerators, and motors
Power Factor 1.0 - Provides full rated power without derating, maximizing real load capacity
Wide PV Input Range - 60Vdc to 500Vdc MPPT voltage, compatible with various solar panel configurations
High-Current Built-in MPPT - Solar charge current up to 60A-120A with PV-to-inverter efficiency up to 96%
Multiple Output Priority Modes - UTL, SOL, SBU, SUB for flexible energy management across different usage scenarios
Battery Equalization (EQ) - Optimizes battery bank performance and extends cycle life
Detachable Dust Cover - Easy cleaning maintenance, ideal for harsh and dusty environments
Optional WiFi Remote Monitoring - Real-time system status monitoring via smartphone or PC

Advanced Features

LiFePO₄ Communication via RS485 - Intelligent BMS interaction for safe and efficient charging/discharging
Dual-Source Charging - PV + AC grid delivers total charge current up to 60A-120A (model dependent)
Wide AC Input Range - 90-280Vac with selectable modes for personal computers (170-280V) or home appliances (90-280V)
Fast Transfer Time - 10ms (PC mode) or 20ms (appliance mode) between grid and battery
Overload Protection - 10s at 110-140% load, 5s at ≥140% load
Wide Operating Temperature - -10°C to +50°C with 5-95% non-condensing humidity tolerance
Built-in CC/CV Charging - 3-stage intelligent charge algorithm for both lead-acid and lithium batteries

Primary Functions

Automatic energy dispatch among PV, utility, and battery sources
Supports both lead-acid and LiFePO₄ battery types
Integrated solar charger and AC charger with configurable priority and current limits
Surge power up to 2× rated power (e.g., 6.2kW model provides 12.4kVA surge)
Dual communication ports: RS232 + RS485 for comprehensive monitoring and external control

Product Specifications

Specification	Model 1	Model 2	Model 3
Place of Origin	China	China	China
Mounting Method	Wall Bracket	Wall Bracket	Wall Bracket
Nominal Battery Voltage (V)	24VDC	48VDC	48VDC
Lithium Battery Activation	YES (By PV or Utility)	YES (By PV or Utility)	YES (By PV or Utility)
Nominal Voltage	230VAC	230VAC	230VAC
Lithium Battery Communication	YES (RS485)	YES (RS485)	YES (RS485)
Frequency	50/60Hz	50/60Hz	50/60Hz
Waveform	Pure Sine Wave	Pure Sine Wave	Pure Sine Wave
Solar Charger Type	MPPT	MPPT	MPPT
Communication Interface	RS232+RS485	RS232+RS485	RS232+RS485
PV Array MPPT Voltage Range	60VDC~500VDC	60VDC~500VDC	60VDC~500VDC
Surge Power	7000VA	11000VA	1240VA
Size	358295100mm	438295105mm	438295105mm
Weight	7kg	9kg	9kg
Operating Temperature Range	-10℃ to 50℃	-10℃ to 50℃	-10℃ to 50℃

Product Images

Internal Components View

Connection Panel

Side View

Display Interface

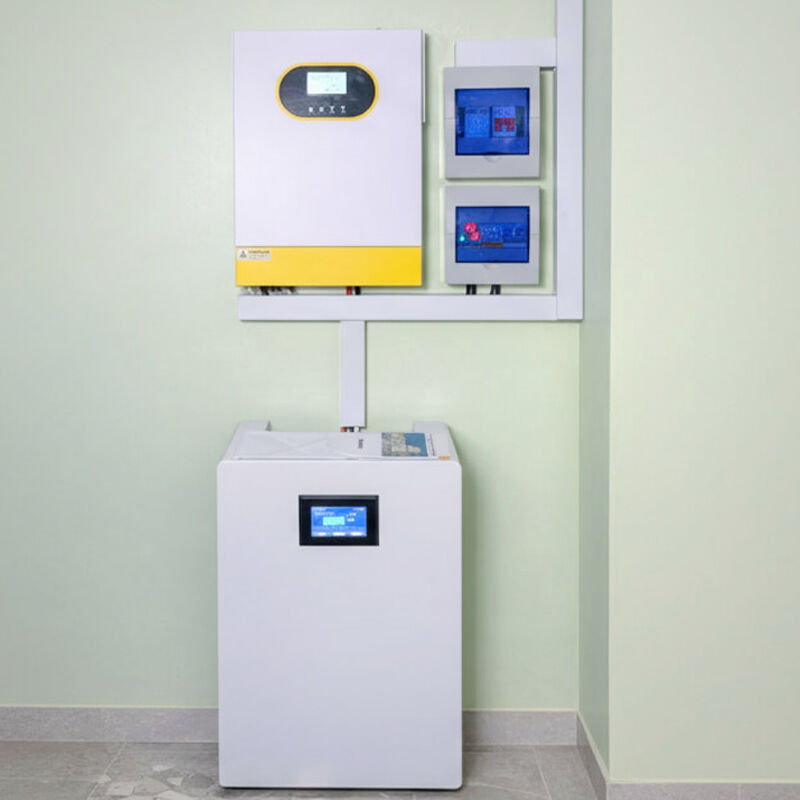

Installation Diagram

Technical Specifications

Wiring Schematic

Application Examples
