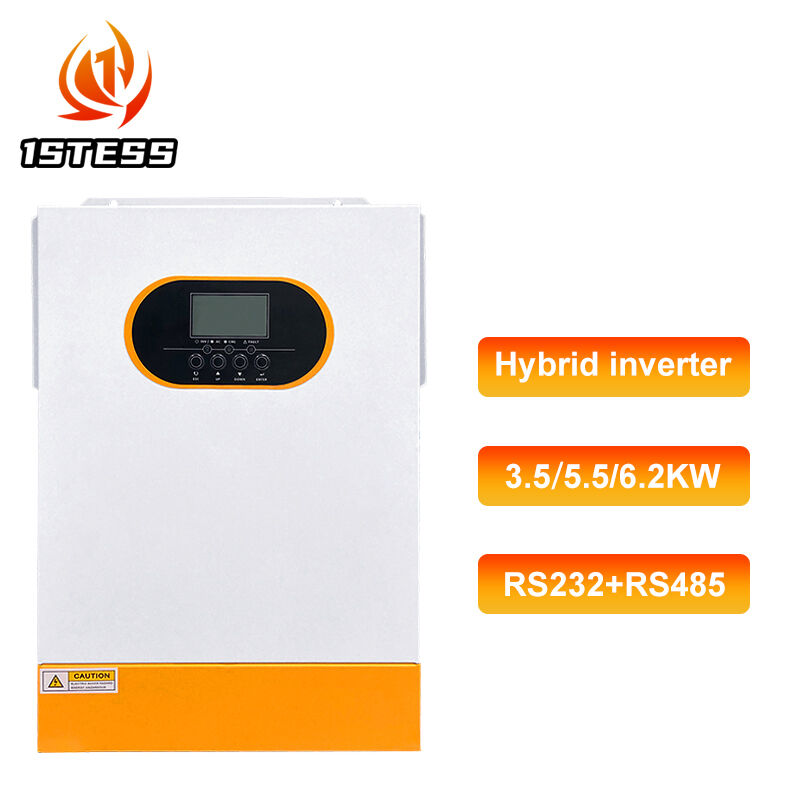

Smart off-grid inverter, 4 output priorities, EQ, longer life, detachable dust cover

Name: Smart off-grid inverter, 4 output priorities, EQ, longer life, detachable dust cover
Brand: Shenzhen First Tech Co., Ltd.
SKU: EM (PV60-500VDC) 620048L
Price: 350.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: 1stess

Certification: CE, IEC

Model Number: EM (PV60-500VDC) 620048L

Document: EM1.5-6.2.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: To be negotiated

Packaging Details: carton box

Delivery Time: 30 days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: 2000 pieces per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      Smart off-grid inverter with detachable dust cover, Off-grid hybrid solar inverter with EQ, Smart inverter with 4 output priorities


Charging Mode:	MPPT	Operating Temperature:	-10°C To 50°C
Inverter Type:	Hybrid Solar Inverter	Frequency:	50Hz/60Hz
Output Voltage:	48VDC	Size:	438295105mm

Charging Mode:	MPPT
Operating Temperature:	-10°C To 50°C
Inverter Type:	Hybrid Solar Inverter
Frequency:	50Hz/60Hz
Output Voltage:	48VDC
Size:	438295105mm

Description

Smart off-grid inverter, 4 output priorities, EQ, longer life, detachable dust cover

Smart Off-Grid Inverter with Advanced Energy Management

Lithium Battery Activation via PV or Utility - Wakes up deeply discharged Li-ion batteries, preventing premature disposal.

Operates Without a Battery - Works grid-connected or directly from PV, lowering initial costs for budget-conscious off-grid installations.

Pure Sine Wave Output - Clean power for all loads (inductive/capacitive), including air conditioners, refrigerators, and motors.

Power Factor 1.0 - Delivers full rated power without derating, maximizing real load capacity.

Wide PV Input Range - 60Vdc - 500Vdc MPPT voltage, compatible with various solar panel configurations.

High-Current Built-in MPPT - Solar charge current up to 60A - 120A, with PV-to-inverter efficiency up to 96%.

Multiple Output Priority Modes - UTL, SOL, SBU, SUB - Flexible energy management for different usage scenarios.

Battery Equalisation (EQ) - Optimises battery bank performance and extends cycle life.

Detachable Dust Cover - Easy cleaning, ideal for harsh/dusty environments.

Optional WiFi Remote Monitoring - Real-time system status via smartphone or PC.

Key Technical Features

LiFePO₄ Communication via RS485 - Intelligent BMS interaction for safe and efficient charging/discharging.

Dual-Source Charging - PV + AC grid can deliver total charge current up to 60A - 120A (model dependent).

Wide AC Input Range - 90-280Vac, with selectable modes for personal computers (170-280V) or home appliances (90-280V).

Fast Transfer Time - 10ms (PC mode) or 20ms (appliance mode) between grid and battery.

Overload Protection - 10s at 110-140% load, 5s at ≥140% load.

Wide Operating Temperature - -10°C to +50°C, with 5-95% non-condensing humidity tolerance.

Built-in CC/CV Charging - 3-stage intelligent charge algorithm for both lead-acid and lithium batteries.

Main Functions

Automatic energy dispatch among PV, utility, and battery

Supports lead-acid and LiFePO₄ battery types

Solar charger + AC charger integrated; priority and current limits configurable

Surge power up to 2× rated power (e.g., 6.2kW model provides 12.4kVA surge)

Dual communication ports: RS232 + RS485 for monitoring and external control

Product Specifications

Specification	Model 1	Model 2	Model 3
Place of Origin	China	China	China
Mounting Method	Wall Bracket	Wall Bracket	Wall Bracket
Nominal Battery Voltage (V)	24VDC	48VDC	48VDC
Lithium Battery activation	YES (By PV or Utility)	YES (By PV or Utility)	YES (By PV or Utility)
Nominal Voltage	230VAC	230VAC	230VAC
Lithium Battery communication	YES (RS485)	YES (RS485)	YES (RS485)
Frequency	50/60Hz	50/60Hz	50/60Hz
Waveform	Pure Sine wave	Pure Sine wave	Pure Sine wave
Solar Charger Type	MPPT	MPPT	MPPT
Communication Interface	RS232+RS485	RS232+RS485	RS232+RS485
PV Array MPPT Voltage Range	60VDC~500VDC	60VDC~500VDC	60VDC~500VDC
Surge Power	7000VA	11000VA	1240VA
Size	358295100mm	438295105mm	438295105mm
Weight	7kg	9kg	9kg
Operating Temperature Range	-10℃ to 50℃	-10℃ to 50℃	-10℃ to 50℃

Product Images

Internal Components View

Connection Panel

Side View

Display Interface

Installation Diagram

Technical Specifications

Wiring Schematic

Application Examples
