Peak efficiency from PV to inverter up to 96%, and from battery to inverter up to 93%, low energy loss

Name: Peak efficiency from PV to inverter up to 96%, and from battery to inverter up to 93%, low energy loss
Brand: Shenzhen First Tech Co., Ltd.
SKU: EM (PV60-500VDC) 620048L
Price: 350.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: 1stess

Certification: CE, IEC

Model Number: EM (PV60-500VDC) 620048L

Document: EM1.5-6.2.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: To be negotiated

Packaging Details: carton box

Delivery Time: 30 days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: 2000 pieces per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      Off Grid Hybrid Solar Inverter high efficiency, Solar Inverter low energy loss, Hybrid Inverter PV to battery


Charging Mode:	MPPT	Operating Temperature:	-10°C To 50°C
Inverter Type:	Hybrid Solar Inverter	Frequency:	50Hz/60Hz
Output Voltage:	48VDC	Size:	438295105mm

Charging Mode:	MPPT
Operating Temperature:	-10°C To 50°C
Inverter Type:	Hybrid Solar Inverter
Frequency:	50Hz/60Hz
Output Voltage:	48VDC
Size:	438295105mm

Description

Peak efficiency from PV to inverter up to 96%, and from battery to inverter up to 93%, low energy loss

Peak efficiency from PV to inverter up to 96%, and from battery to inverter up to 93%, ensuring minimal energy loss.

Product Overview

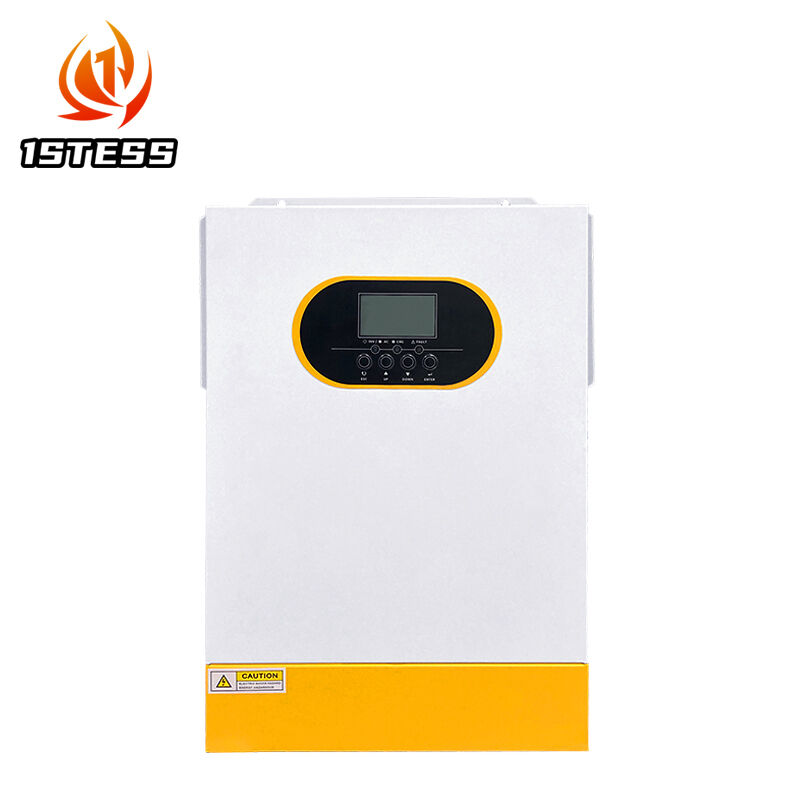

This advanced hybrid inverter delivers exceptional performance with high-efficiency energy conversion, flexible configuration options, and robust operation in various environments.

Key Advantages

Peak efficiency from PV to inverter up to 96%, and from battery to inverter up to 93%, minimizing energy loss
Wide PV input voltage range from 60Vdc to 500Vdc, adaptable to various solar panel configurations
Built-in high-power MPPT solar charger with max charging current from 60A to 120A, improving PV utilization
Supports lithium battery (LiFePO4) via RS485 communication, and can activate dormant battery by PV or utility
Can operate independently without battery connection, reducing initial investment cost
Pure sine wave AC output, safe for sensitive electronic devices
Four output priority modes (UTL, SOL, SBU, SUB) for flexible adaptation to different usage scenarios
Equalization charging function to optimize battery performance and extend lifespan
Detachable dust cover for easy maintenance in harsh environments
Wide utility input range (90-280Vac), compatible with home appliances and PC mode with selectable transfer time

Technical Features

Pure sine wave output waveform
Power factor correction up to 1.0
Maximum power point tracking (MPPT) technology
PV input voltage range 60Vdc-500Vdc
RS485 communication port for lithium battery BMS
Lithium battery activation by PV or utility
Capable to work without battery
Selectable output priority: UTL, SOL, SBU, SUB
Equalization charging function
Detachable dust cover design
RS232 and RS485 communication ports
Optional WiFi module for remote monitoring
Wide utility input 90-280Vac
Transfer time 10ms (PC) or 20ms (home appliances)

Operational Functions

Off-grid hybrid inversion, standalone operation integrating PV charging and energy management
MPPT solar charging to maximize PV energy harvesting
AC utility charging with current 60A to 80A
Simultaneous hybrid charging from PV and utility
RS485 communication with lithium battery BMS for intelligent management
Activate sleeping lithium battery via PV or utility
Four output priority switching for different power supply needs
Equalization charging for battery health maintenance
Overload protection (time delay at 110%-140% load)
Optional WiFi remote monitoring of operating status
Wide voltage auto-adaptation (90-280Vac utility input)
Pure sine wave AC output to protect equipment

Product Specifications

Specification	Model 1	Model 2	Model 3
Place of Origin	China	China	China
Mounting Method	Wall Bracket	Wall Bracket	Wall Bracket
Nominal Battery Voltage (V)	24VDC	48VDC	48VDC
Lithium Battery activation	YES (By PV or Utility)	YES (By PV or Utility)	YES (By PV or Utility)
Nominal Voltage	230VAC	230VAC	230VAC
Lithium Battery communication	YES (RS485)	YES (RS485)	YES (RS485)
Frequency	50/60Hz	50/60Hz	50/60Hz
Waveform	Pure Sine wave	Pure Sine wave	Pure Sine wave
Solar Charger Type	MPPT	MPPT	MPPT
Communication Interface	RS232+RS485	RS232+RS485	RS232+RS485
PV Array MPPT Voltage Range	60VDC~500VDC	60VDC~500VDC	60VDC~500VDC
Surge Power	7000VA	11000VA	1240VA
Size	358295100mm	438295105mm	438295105mm
Weight	7kg	9kg	9kg
Operating Temperature Range	-10℃ to 50℃	-10℃ to 50℃	-10℃ to 50℃
