Built in High Current MPPT Charger Max 120A for Solar Power System

Name: Built in High Current MPPT Charger Max 120A for Solar Power System
Brand: Shenzhen First Tech Co., Ltd.
SKU: EM (PV60-500VDC) 620048L
Price: 350.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: 1stess

Certification: CE, IEC

Model Number: EM (PV60-500VDC) 620048L

Document: EM1.5-6.2.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: To be negotiated

Packaging Details: carton box

Delivery Time: 30 days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: 2000 pieces per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      High Current MPPT solar charger, 120A MPPT solar inverter, Off grid hybrid solar charger


Charging Mode:	MPPT	Operating Temperature:	-10°C To 50°C
Inverter Type:	Hybrid Solar Inverter	Frequency:	50Hz/60Hz
Output Voltage:	48VDC	Size:	438295105mm

Charging Mode:	MPPT
Operating Temperature:	-10°C To 50°C
Inverter Type:	Hybrid Solar Inverter
Frequency:	50Hz/60Hz
Output Voltage:	48VDC
Size:	438295105mm

Description

Built in High Current MPPT Charger Max 120A for Solar Power System

Built-in High Current MPPT Charger Max 120A for Solar Power System

Key Advantages

Peak efficiency up to 96% from PV to inverter and 93% from battery to inverter, minimizing energy loss
Wide PV input voltage range (60Vdc to 500Vdc) compatible with various solar panel configurations
Built-in high-power MPPT solar charger with maximum charging current from 60A to 120A
Supports lithium battery (LiFePO4) via RS485 communication with activation capability for dormant batteries
Operates independently without battery connection, reducing initial investment costs
Pure sine wave AC output ensures safety for sensitive electronic equipment
Four output priority modes (UTL, SOL, SBU, SUB) for flexible power management
Equalization charging function optimizes battery performance and extends lifespan
Detachable dust cover facilitates easy maintenance in challenging environments
Wide utility input range (90-280Vac) with selectable transfer time for different applications

Technical Features

Pure sine wave output waveform
Power factor correction up to 1.0
Maximum power point tracking (MPPT) technology
PV input voltage range 60Vdc-500Vdc
RS485 communication port for lithium battery BMS integration
Lithium battery activation via PV or utility power
Battery-free operation capability
Selectable output priority: UTL, SOL, SBU, SUB
Equalization charging function
Detachable dust cover design
RS232 and RS485 communication ports
Optional WiFi module for remote monitoring
Wide utility input 90-280Vac
Transfer time 10ms (PC) or 20ms (home appliances)

Operational Functions

This hybrid inverter provides off-grid operation with integrated PV charging and energy management. It features MPPT solar charging to maximize energy harvesting from photovoltaic arrays, AC utility charging with 60A to 80A current capacity, and simultaneous hybrid charging from both PV and utility sources.

The system includes RS485 communication with lithium battery BMS for intelligent management, activation capability for sleeping lithium batteries, four output priority switching modes for diverse power supply requirements, equalization charging for battery health maintenance, overload protection with time delay functionality, optional WiFi remote monitoring, wide voltage auto-adaptation, and pure sine wave AC output to protect connected equipment.

Product Specifications

Specification	Model 1	Model 2	Model 3
Place of Origin	China	China	China
Mounting Method	Wall Bracket	Wall Bracket	Wall Bracket
Nominal Battery Voltage (V)	24VDC	48VDC	48VDC
Lithium Battery Activation	YES (By PV or Utility)	YES (By PV or Utility)	YES (By PV or Utility)
Nominal Voltage	230VAC	230VAC	230VAC
Lithium Battery Communication	YES (RS485)	YES (RS485)	YES (RS485)
Frequency	50/60Hz	50/60Hz	50/60Hz
Waveform	Pure Sine wave	Pure Sine wave	Pure Sine wave
Solar Charger Type	MPPT	MPPT	MPPT
Communication Interface	RS232+RS485	RS232+RS485	RS232+RS485
PV Array MPPT Voltage Range	60VDC~500VDC	60VDC~500VDC	60VDC~500VDC
Surge Power	7000VA	11000VA	1240VA
Size	358295100mm	438295105mm	438295105mm
Weight	7kg	9kg	9kg
Operating Temperature Range	-10℃ to 50℃	-10℃ to 50℃	-10℃ to 50℃

Product Images

Internal Components View

Connection Panel

Side View

Display Interface

Installation Diagram

Technical Specifications

Wiring Schematic

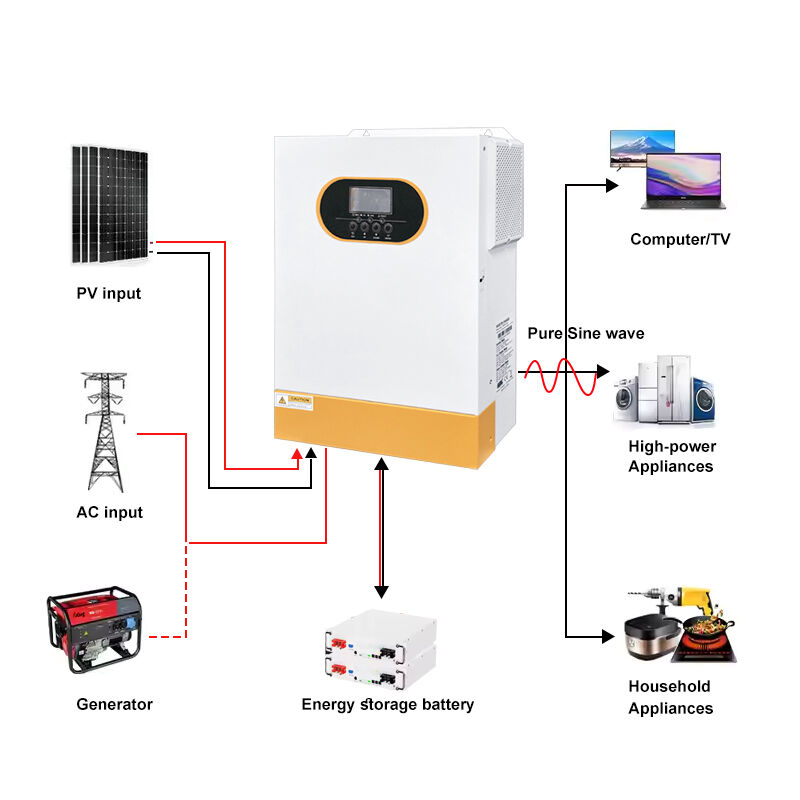

Application Examples
