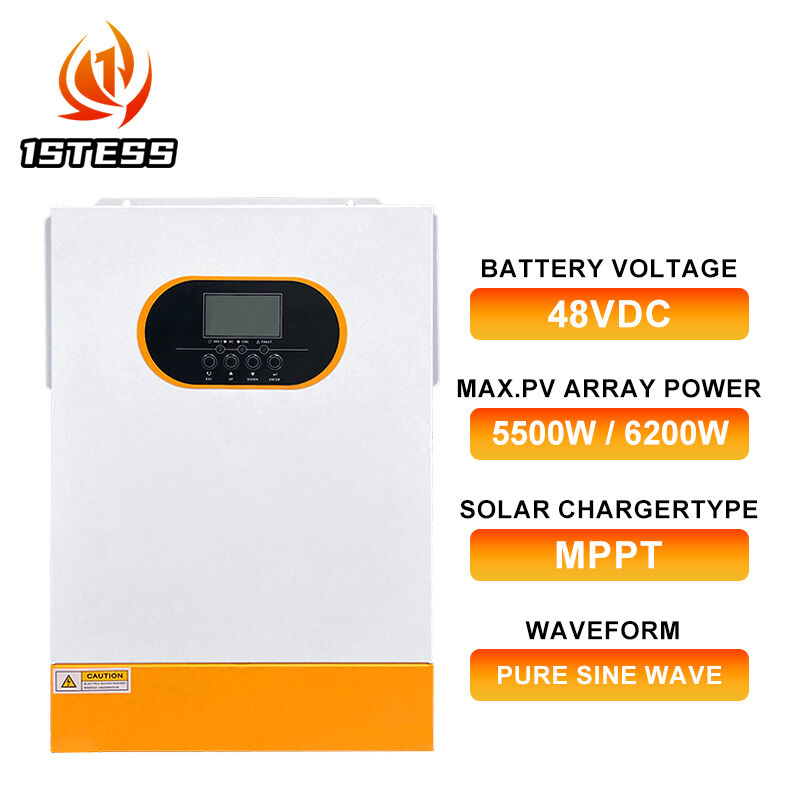

Residential Off Grid Inverter with RS485 Lithium BMS Communication Port

Name: Residential Off Grid Inverter with RS485 Lithium BMS Communication Port
Brand: Shenzhen First Tech Co., Ltd.
SKU: EM (PV60-500VDC) 620048L
Price: 350.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: 1stess

Certification: CE, IEC

Model Number: EM (PV60-500VDC) 620048L

Document: EM1.5-6.2.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: To be negotiated

Packaging Details: carton box

Delivery Time: 30 days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: 2000 pieces per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      Residential off grid inverter with RS485, Lithium BMS communication port inverter, Hybrid solar inverter with warranty


Charging Mode:	MPPT	Operating Temperature:	-10°C To 50°C
Inverter Type:	Hybrid Solar Inverter	Frequency:	50Hz/60Hz
Output Voltage:	48VDC	Size:	438295105mm

Charging Mode:	MPPT
Operating Temperature:	-10°C To 50°C
Inverter Type:	Hybrid Solar Inverter
Frequency:	50Hz/60Hz
Output Voltage:	48VDC
Size:	438295105mm

Description

Residential Off Grid Inverter with RS485 Lithium BMS Communication Port

Key Performance Advantages

Exceptional efficiency with up to 96% PV to inverter and 93% battery to inverter conversion rates
Broad PV input voltage range (60Vdc-500Vdc) compatible with diverse solar panel configurations
High-power MPPT solar charger with 60A-120A charging capacity for optimal PV utilization
Advanced lithium battery support via RS485 communication with activation capability
Battery-free operation capability to reduce initial system investment
Pure sine wave AC output ensures safety for sensitive electronic equipment
Four output priority modes (UTL, SOL, SBU, SUB) for flexible power management
Equalization charging function enhances battery performance and extends service life
Detachable dust cover facilitates maintenance in challenging environments
Wide utility input range (90-280Vac) with selectable transfer timing

Technical Features

Pure sine wave output waveform
Power factor correction up to 1.0
Maximum power point tracking (MPPT) technology
PV input voltage range 60Vdc-500Vdc
RS485 communication port for lithium battery BMS
Lithium battery activation by PV or utility
Battery-independent operation capability
Selectable output priority: UTL, SOL, SBU, SUB
Equalization charging function
Detachable dust cover design
RS232 and RS485 communication ports
Optional WiFi module for remote monitoring
Wide utility input 90-280Vac
Transfer time 10ms (PC) or 20ms (home appliances)

Operational Functions

Off-grid hybrid inversion with integrated PV charging and energy management
MPPT solar charging for maximum energy harvesting efficiency
AC utility charging with 60A to 80A current capacity
Simultaneous hybrid charging from PV and utility sources
RS485 communication with lithium battery BMS for intelligent management
Sleeping lithium battery activation via PV or utility power
Four output priority switching for diverse power supply requirements
Equalization charging for optimal battery health maintenance
Overload protection with time delay at 110%-140% load capacity
Optional WiFi remote monitoring of operational status
Wide voltage auto-adaptation (90-280Vac utility input)
Pure sine wave AC output for equipment protection

Product Specifications

Specification	Model 1	Model 2	Model 3
Place of Origin	China	China	China
Mounting Method	Wall Bracket	Wall Bracket	Wall Bracket
Nominal Battery Voltage (V)	24VDC	48VDC	48VDC
Lithium Battery activation	YES (By PV or Utility)	YES (By PV or Utility)	YES (By PV or Utility)
Nominal Voltage	230VAC	230VAC	230VAC
Lithium Battery communication	YES (RS485)	YES (RS485)	YES (RS485)
Frequency	50/60Hz	50/60Hz	50/60Hz
Waveform	Pure Sine wave	Pure Sine wave	Pure Sine wave
Solar Charger Type	MPPT	MPPT	MPPT
Communication Interface	RS232+RS485	RS232+RS485	RS232+RS485
PV Array MPPT Voltage Range	60VDC~500VDC	60VDC~500VDC	60VDC~500VDC
Surge Power	7000VA	11000VA	1240VA
Size	358295100mm	438295105mm	438295105mm
Weight	7kg	9kg	9kg
Operating Temperature Range	-10℃ to 50℃	-10℃ to 50℃	-10℃ to 50℃
