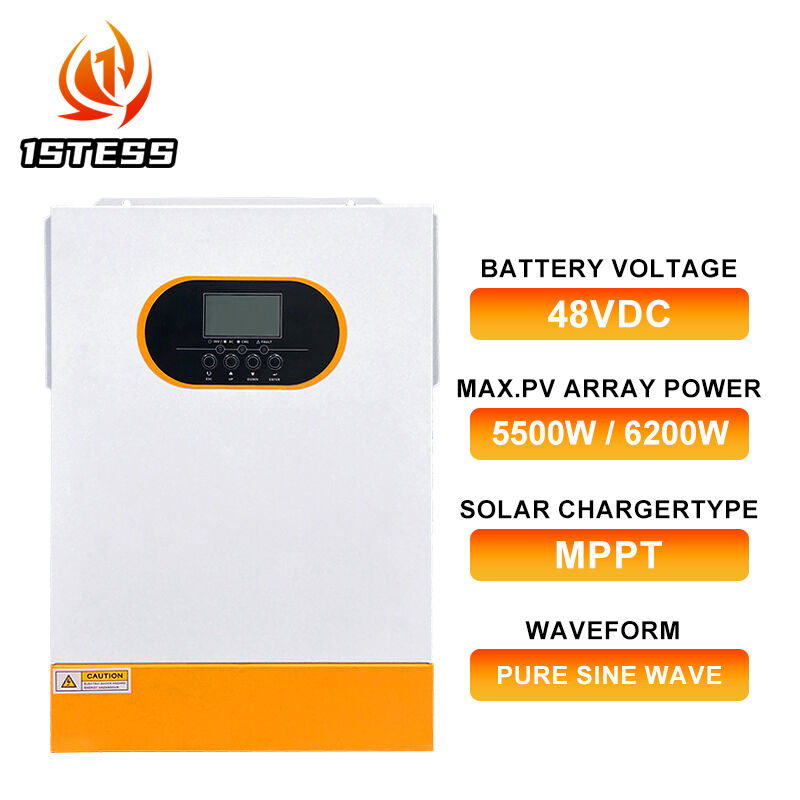

Off Grid Hybrid Solar Inverter featuring lithium BMS and RS485 communication port optimized for residential solar power management

Name: Off Grid Hybrid Solar Inverter featuring lithium BMS and RS485 communication port optimized for residential solar power management
Brand: Shenzhen First Tech Co., Ltd.
SKU: EM (PV60-500VDC) 620048L
Price: 350.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: 1stess

Certification: CE, IEC

Model Number: EM (PV60-500VDC) 620048L

Document: EM1.5-6.2.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: To be negotiated

Packaging Details: carton box

Delivery Time: 30 days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: 2000 pieces per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Off Grid Hybrid Solar Inverter with lithium BMS, Hybrid Solar Inverter with RS485 communication, Residential solar power management inverter


Operating Temperature:	-10°C To 50°C	Inverter Type:	Hybrid Solar Inverter
Size:	438295105mm	Output Voltage:	48VDC
Frequency:	50Hz/60Hz	Charging Mode:	MPPT
Dimensions:	450 X 350 X 150 Mm	Output Current:	120A
Waveform:	Pure Sine Wave	Power Capacity:	5kW
Protection Features:	Overload, Short Circuit, Over Temperature, Reverse Polarity

Operating Temperature:	-10°C To 50°C
Inverter Type:	Hybrid Solar Inverter
Size:	438295105mm
Output Voltage:	48VDC
Frequency:	50Hz/60Hz
Charging Mode:	MPPT
Dimensions:	450 X 350 X 150 Mm
Output Current:	120A
Waveform:	Pure Sine Wave
Power Capacity:	5kW
Protection Features:	Overload, Short Circuit, Over Temperature, Reverse Polarity

Description

Off Grid Hybrid Solar Inverter featuring lithium BMS and RS485 communication port optimized for residential solar power management

Off Grid Hybrid Solar Inverter with Lithium BMS Communication

Advanced residential solar power management system featuring RS485 communication port and lithium battery management optimization

Key Performance Advantages

High Efficiency Conversion
Up to 96% PV to inverter and 93% battery to inverter conversion rates

Broad PV Compatibility
60Vdc-500Vdc input voltage range for diverse solar panel configurations

Advanced MPPT Charging
60A-120A charging capacity for optimal PV utilization

Lithium Battery Support
RS485 communication with activation capability for intelligent management

Flexible Operation
Battery-free operation capability to reduce initial system investment

Pure Sine Wave Output
Ensures safety for sensitive electronic equipment

Technical Specifications

Specification	Model 1	Model 2	Model 3
Place of Origin	China	China	China
Mounting Method	Wall Bracket	Wall Bracket	Wall Bracket
Nominal Battery Voltage	24VDC	48VDC	48VDC
Lithium Battery Activation	YES (By PV or Utility)	YES (By PV or Utility)	YES (By PV or Utility)
Nominal Voltage	230VAC	230VAC	230VAC
Lithium Battery Communication	YES (RS485)	YES (RS485)	YES (RS485)
Frequency	50/60Hz	50/60Hz	50/60Hz
Waveform	Pure Sine wave	Pure Sine wave	Pure Sine wave
Solar Charger Type	MPPT	MPPT	MPPT
Communication Interface	RS232+RS485	RS232+RS485	RS232+RS485
PV Array MPPT Voltage Range	60VDC~500VDC	60VDC~500VDC	60VDC~500VDC
Surge Power	7000VA	11000VA	1240VA
Size	358295100mm	438295105mm	438295105mm
Weight	7kg	9kg	9kg
Operating Temperature Range	-10℃ to 50℃	-10℃ to 50℃	-10℃ to 50℃
