Off Grid Hybrid Solar Inverter with Intelligent Energy Management
Our Off Grid Hybrid Solar Inverter is designed for residential and commercial solar energy storage applications, providing stable power conversion, intelligent battery charging, and flexible energy management.
Supporting LiFePO4 and lead-acid batteries, this high-efficiency hybrid inverter integrates solar charger, AC charger, and inverter functions into one compact solution. With PF1.0 performance, pure sine wave output, advanced MPPT technology, and RS485 battery communication, it delivers reliable power for homes, backup systems, and off-grid solar installations.
Product Highlights
Intelligent LiFePO4 Battery Communication
Equipped with RS485 communication, the inverter enables intelligent interaction with LiFePO4 battery BMS systems, ensuring safe charging, optimized battery performance, and longer battery lifespan.
Lithium Battery Activation Function
The inverter supports lithium battery wake-up through PV solar input or utility power, helping recover deeply discharged batteries and reducing unnecessary battery replacement costs.
Battery-Free Solar Operation
Designed for flexible off-grid applications, the inverter can operate without battery connection when connected to PV or grid power, helping reduce initial installation costs.
Pure Sine Wave Power Output
Provides clean and stable AC power suitable for various household and industrial loads, including:
- Air conditioners
- Refrigerators
- Pumps
- Motors
- Electronic equipment
PF1.0 High Power Performance
With a power factor of 1.0, the inverter delivers full rated output power without derating, improving system efficiency and maximizing usable energy.
Wide Solar Input Compatibility
The built-in MPPT controller supports:
- MPPT voltage range: 60Vdc-500Vdc
- Solar charging current: 60A-120A
- PV to inverter efficiency: up to 96%
Compatible with different solar panel configurations for flexible system design.
Flexible Energy Management Modes
Multiple operation priority modes available:
- UTL (Utility Priority)
- SOL (Solar Priority)
- SBU (Solar-Battery-Utility)
- SUB (Solar-Utility-Battery)
Users can customize energy usage according to electricity cost, solar availability, and backup requirements.
Intelligent Battery Charging System
Integrated CC/CV charging technology provides:
- 3-stage intelligent charging
- Lead-acid battery support
- Lithium battery support
- Battery equalization function
Improving battery reliability and extending service life.
Optional Remote Monitoring
Optional WiFi monitoring enables users to check:
- Solar generation status
- Battery condition
- Load consumption
- System operation data
via smartphone or PC.
Key Technical Features
| Feature |
Specification |
| Output Waveform |
Pure Sine Wave |
| Power Factor |
PF1.0 |
| Battery Type |
LiFePO4 / Lead Acid |
| Battery Communication |
RS485 BMS Communication |
| Solar MPPT Range |
60Vdc-500Vdc |
| Solar Charging Current |
60A-120A |
| PV Efficiency |
Up to 96% |
| AC Input Voltage |
90-280Vac |
| Transfer Time |
10ms (PC Mode), 20ms (Appliance Mode) |
| Overload Protection |
110-140% load for 10s; ≥140% load for 5s |
| Operating Temperature |
-10°C to +50°C |
| Humidity |
5-95% RH non-condensing |
| Communication Ports |
RS232 + RS485 |
Main Applications
Residential Solar Energy Storage
Ideal for:
- Off-grid homes
- Villas
- Remote houses
- Solar backup systems
Commercial Backup Power
Suitable for:
- Small offices
- Shops
- Remote facilities
- Emergency power systems
Remote Area Solar Solutions
Designed for areas with:
- Unstable grid power
- Limited electricity access
- High electricity costs
Why Choose This Hybrid Solar Inverter
✔ High-efficiency solar conversion up to 96%
✔ Supports LiFePO4 battery BMS communication
✔ Pure sine wave output for sensitive loads
✔ Flexible PV + AC dual charging
✔ Battery-free operation capability
✔ Multiple energy priority modes
✔ Wide voltage input range
✔ Optional WiFi monitoring
✔ Suitable for off-grid and backup power applications
Product Specifications
| Specification |
Model 1 |
Model 2 |
Model 3 |
| Place of Origin |
China |
China |
China |
| Mounting Method |
Wall Bracket |
Wall Bracket |
Wall Bracket |
| Nominal Battery Voltage (V) |
24VDC |
48VDC |
48VDC |
| Lithium Battery Activation |
YES (By PV or Utility) |
YES (By PV or Utility) |
YES (By PV or Utility) |
| Nominal Voltage |
230VAC |
230VAC |
230VAC |
| Lithium Battery Communication |
YES (RS485) |
YES (RS485) |
YES (RS485) |
| Frequency |
50/60Hz |
50/60Hz |
50/60Hz |
| Waveform |
Pure Sine wave |
Pure Sine wave |
Pure Sine wave |
| Solar Charger Type |
MPPT |
MPPT |
MPPT |
| Communication Interface |
RS232+RS485 |
RS232+RS485 |
RS232+RS485 |
| PV Array MPPT Voltage Range |
60VDC~500VDC |
60VDC~500VDC |
60VDC~500VDC |
| Surge Power |
7000VA |
11000VA |
1240VA |
| Size |
358*295*100mm |
438*295*105mm |
438*295*105mm |
| Weight |
7kg |
9kg |
9kg |
| Operating Temperature Range |
-10℃ to 50℃ |
-10℃ to 50℃ |
-10℃ to 50℃ |
Product Images
Internal Components View
Connection Panel
Side View
Display Interface

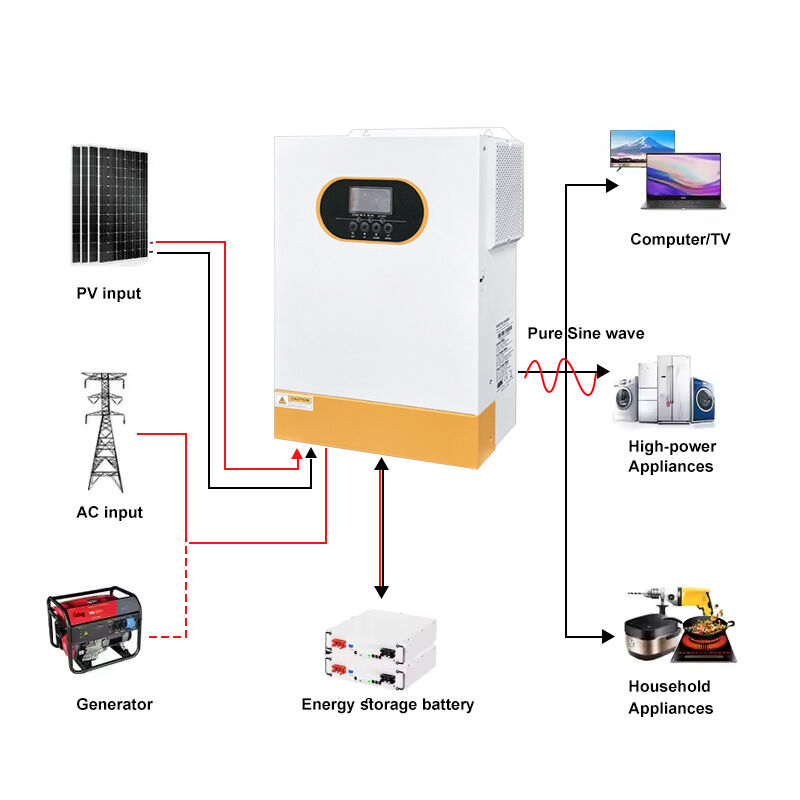

Installation Diagram
Technical Specifications
Wiring Schematic
Application Examples
